RW350R-GL

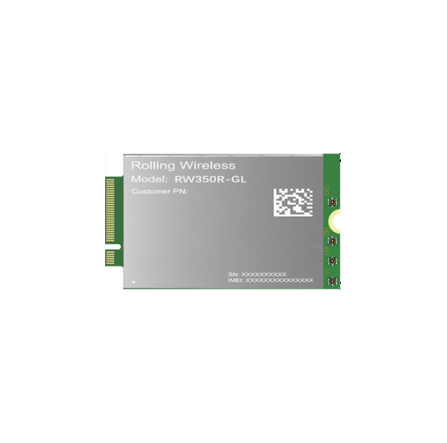

Rolling Wireless S.a.r.l. RW350R-GL
- Small ,Slim M.2 form factor
- High speed data module
- SA DL Peak: 4.67Gbps UL: 1.25Gbps
- NSA DL Peak: 4.53Gbps UL: 835Mbps
- LTE: DL ~1.6Gbps (CAT19) UL: 211Mbps（CAT18）
- Rx diversity for 3G/4G/5G, up to 4x4 DL-MIMO & 2x2 UL-MIMO
- GNSS support (GPS, GLONASS, BeiDou, Galileo, QZSS)
- Low power and low cost
- Globally approval module
| IOT完了年月 | 2025年2月 |
|---|
| Radio Access technology | 5G/4G/3G | ||
|---|---|---|---|
| Chipset vendor / model | MediaTek / MT6880 | ||
| Module FW version | 81601.0000.00.29.25.09 | ||
| IOT completed information | 5G | Availability | S |
| Supported Band | Band n78/n79 | ||
| 4G | Availability | S | |
| Supported Band | Band 1/3/19/28/42 | ||
| Category | Cat.12 | ||
| DL CA | 5CC | ||
| UL CA | 2CC | ||
| 3G | Availability | S | |
| Supported Band | BandⅠ | ||
| DL Category | Cat.24 | ||
| UL Category | Cat.7 | ||
| Function | CS Voice | NS | |
| VoLTE | NS | ||
| Data | S | ||
| SMS | S | ||
| eDRX | NS | ||
| PSM | NS | ||
| GPS | Standalone | S | |
| Assisted （Control Plane） |
NS | ||
| Module information | Interface | PCIe Gen3 X1 / USB 2.0 (For debug) | |
| Operation Temperature | –10℃ ~ +55℃ | ||
| Form Factor | M.2 | ||
| Dimension ※L×W×H(mm) | 30 x 52 x 2.3 | ||
| Weight（g） | ~8g | ||
Update date:2025/4
