EN

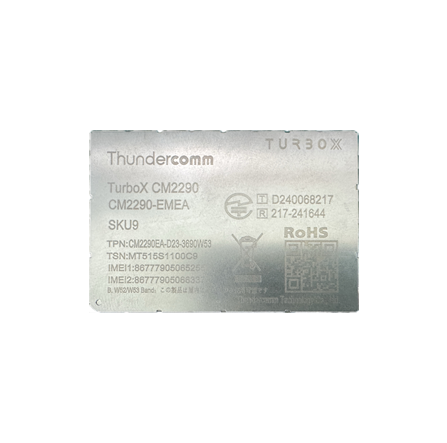

TurBox CM2290
Thundercomm Technology Co., Ltd. TurBox CM2290
- Global Multi-bands: LTE Cat 4
- Discrete Memory: Easy to change the memory configuration to save cost
- Always-on Processor: Support always-on use cases at reduced power level
- Video: 1080P@30FPS encode / 1080P@30FPS decode
- Display Support: HD+, 720 × 1680@60 Hz, 10-bit end-to-end, and up to four hardware layer composition
| IOT完了年月 | 2025年2月 |
|---|
| Radio Access technology | 4G | ||
|---|---|---|---|
| Chipset vendor / model | Qualcomm / QCM2290 | ||
| Module FW version | TurboXCM2290EALA30HA11.R01004 | ||
| IOT completed information | 5G | Availability | NS |
| Supported Band | NS | ||
| 4G | Availability | S | |
| Supported Band | Band 1/3/19/28 | ||
| Category | Cat.4 | ||
| DL CA | NS | ||
| UL CA | NS | ||
| 3G | Availability | NS | |
| Supported Band | NS | ||
| DL Category | NS | ||
| UL Category | NS | ||
| Function | CS Voice | NS | |
| VoLTE | NS | ||
| Data | S | ||
| SMS | NS | ||
| eDRX | NS | ||
| PSM | NS | ||
| GPS | Standalone | S | |
| Assisted （Control Plane） |
S | ||
| Module information | Interface | 1 x USB 2.0 or USB 3.1; 9 x QUP; 1 x SD Card; 2 x UIM; 1x MI2S, 4 x DMIC, 3 x AMIC, GPIOs | |
| Operation Temperature | –25℃ ~ +75℃ | ||
| Form Factor | LGA | ||
| Dimension ※L×W×H(mm) | 51 x 35 x 2.9 | ||
| Weight（g） | 10.8g | ||
Update date:2025/4
お問い合わせ先
| メーカー | |
|---|---|
| 部署／担当者 | Thundercomm IoT Business Team |
| 電話番号 | 03-6417-9366 |
- 商品写真および画面はイメージです。実物と若干異なる場合があります。
