JP
AG35-J

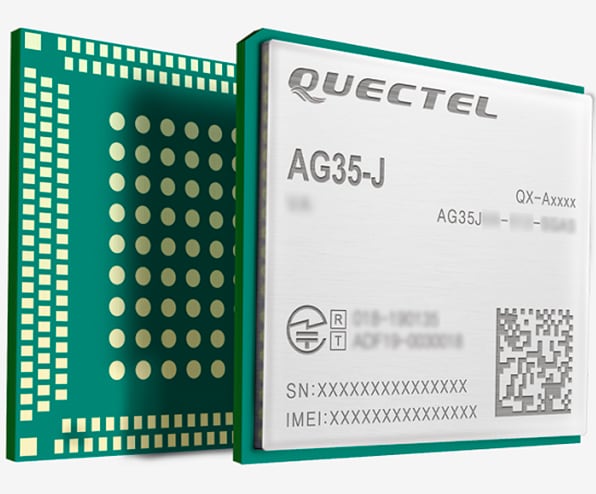

AG35-J Quectel Wireless Solutions Co., Ltd.
- LTE FDD/TDD/WCDMA
- Up to 8 APNs and security features:SELinux/TrustZone/Secure Boot/ MIMO
- TCP/UDP/PPP/PING/FTP(S)/ HTTP(S)/SMTP/SSL/TLS/ MMS/NTP/FILE/QMI
- Designed for automotive applications requiring IATF 16949
- Multi-constellation GNSS receiver is available.Dead Reckoning is supported through external IMUs and RTK algorithm to achieve high-precision positioning (optional)
| IOT完了年月 | 2020年4月 |
|---|
| Radio Access technology | 4G/3G | ||
|---|---|---|---|
| Chipset vendor / model | Qualcomm/MDM9628 | ||
| Module FW version | AG35JVAR08A06T4G | ||
| IOT completed information | 5G | Availability | NS |
| Supported Band | NS | ||
| 4G | Availability | S | |
| Supported Band | Band 1/3/19/21/28 | ||
| Category | Cat.4 | ||
| DL CA | NS | ||
| UL CA | NS | ||
| 3G | Availability | S | |
| Supported Band | Band I/VI/XIX | ||
| DL Category | Cat.24 | ||
| UL Category | Cat.6 | ||
| Function | CS Voice | S | |
| VoLTE | S | ||
| Data | S | ||
| SMS | S | ||
| eDRX | NS | ||
| PSM | NS | ||
| GPS | Standalone | S | |
| Assisted （Control Plane） |
S | ||
| Module information | Interface | (U)SIM／USB／UART／PCM／I2C/ADC | |
| Operation Temperature | -35°C 〜 +75°C | ||
| Form Factor | LGA | ||
| Dimension ※L×W×H(mm) | 33.0mm × 37.5mm × 3.0mm | ||
| Weight（g） | Approx. 8.1g | ||
Update date:2020/6
