DRMR-H01

DRMR-H01

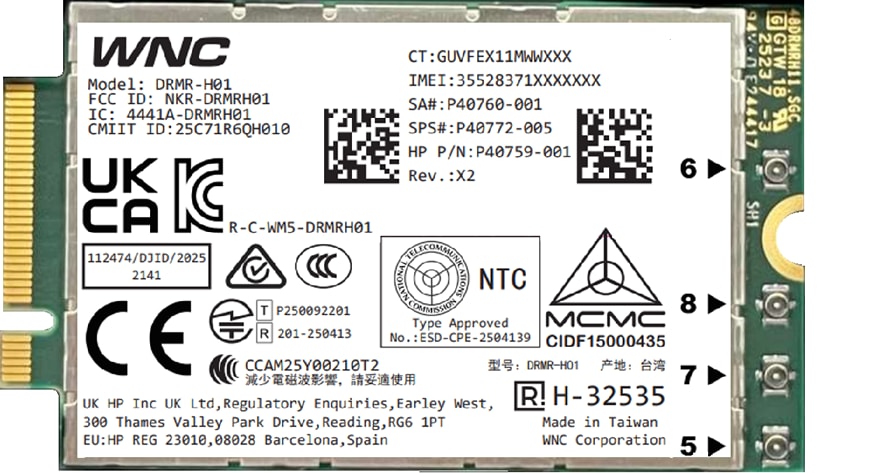

WNC　DRMR-H01

  • Ultra-Fast 5G Sub-6 GHz
    Built on 3GPP Release-15 standards for reliable, high-speed wireless communication.
  • Global Band Support and Integrated GNSS L1
    Stay connected anywhere with worldwide 5G NR SA/NSA and LTE compatibility. Accurate positioning for location-based services.
  • Compact M.2 Form Factor
    Perfect for seamless integration into laptops, IoT devices, and embedded systems.
  • MediaTek M70 5G Modem
    Powered by an ARM Cortex-A5 processor, delivering efficient performance and low power consumption.
  • Platform Driver Support
    Compatible with Windows and Linux, ensuring flexibility for diverse deployments.
IOT完了年月 2026年1月
Radio Access technology 5G/4G
Chipset vendor / model MediaTek / MT6880
Module FW version 13.68_DO
IOT completed information 5G Availability S
Supported Band SA Band n78/n79
NSA Band n1/n28/n78/n79
4G Availability S
Supported Band Band 1/3/19/28/42
Category Cat.12
DL CA 5CC
UL CA 2CC
3G Availability NS
Supported Band NS
DL Category NS
UL Category NS
Function CS Voice NS
VoLTE NS
Data S
SMS S
eDRX NS
eTAU NS
PSM NS
GPS Standalone S
Assisted
（Control Plane）		 S
Module information Interface PCIe Gen3 x1
USB 3.0 x1
USIM (1.2/1.8) x2
sSIM x1 support
Operation Temperature -20°C - + 70°C
Form Factor M.2
Dimension ※L×W×H(mm) 30 x 52 x 2.3
Weight（g） ～8.5g

別ウインドウが開きますDRMR-H01の詳細

お問い合わせ先

メーカー

別ウインドウが開きます WNC Corporation

部署／担当者 Sales / Ken Huang
電話番号 +886-3-666-7799 Ext.3313
