JP
EM9291

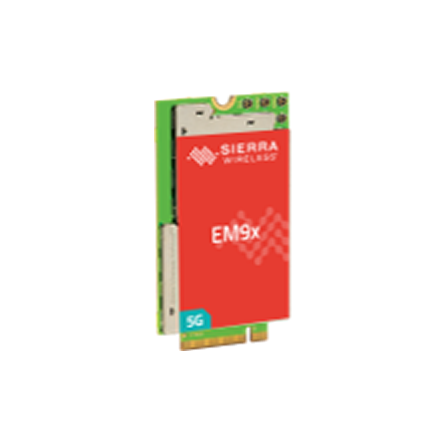

SEMTECH EM9291
- 3GPP Release-16
- Single SKU - supporting EU/APAC/NA
- GNSS (GPS, Glonass, BeiDou, QZSS) bands L1 and L5
- Secure boot prevents unauthorized code on the target
- dual SIM sigle standby(DSSS) enhances roaming coverage
| IOT完了年月 | 2025年3月 |
|---|
| Radio Access technology | 5G/4G | ||
|---|---|---|---|
| Chipset vendor / model | Qualcomm / SDX-62 | ||
| Module FW version | SWIX65C_02.17.08.00 | ||
| IOT completed information | 5G | Availability | S |
| Supported Band | Band n28/n78/n79 | ||
| 4G | Availability | S | |
| Supported Band | Band 1/3/19/28/42 | ||
| Category | Cat.12 | ||
| DL CA | 5CC | ||
| UL CA | 2CC | ||
| 3G | Availability | NS | |
| Supported Band | -- | ||
| DL Category | NS | ||
| UL Category | NS | ||
| Function | CS Voice | NS | |
| VoLTE | NS | ||
| Data | S | ||
| SMS | S | ||
| eDRX | NS | ||
| PSM | NS | ||
| GPS | Standalone | S | |
| Assisted （Control Plane） |
S | ||
| Module information | Interface | PCI Gen3, single lane USB 3.2x1 |
|
| Operation Temperature | Class-A: -30℃ to +70℃ Class-B: -45℃ to +85℃ |
||
| Form Factor | M.2 | ||
| Dimension ※L×W×H(mm) | 52x30x2.38 | ||
| Weight（g） | 9g | ||
Update date:2025/4
お問い合わせ先
| メーカー | |
|---|---|
| 部署／担当者 | Senior Application Engineer/ Hiroki Mayama |
| 電話番号 | +81-80-5951-3861 |
- 商品写真および画面はイメージです。実物と若干異なる場合があります。
