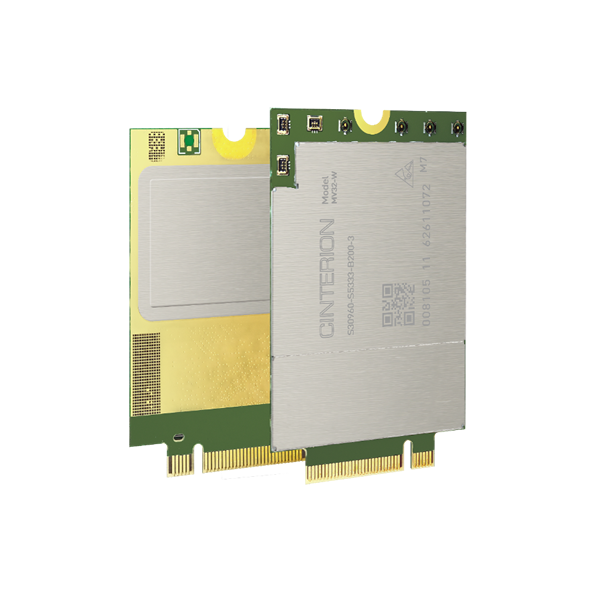

MV32-W-A
MV32-W-A Telit Wireless Solutions
- - 3GPP Release 16
- - Ultra High-Speed 5G with LTE Cat.19
- - Compact size (30x42mm) M.2 data card with PCIe and USB3.1
- - GNSS supporting GPS, Glonass, Beidou and Galileo
- - Global 5G coverage and multi MNO support on one single SKU
- - embedded eSIM
| IOT完了年月 | 2023年12月 |
|---|
| Radio Access technology | 5G/4G | ||
|---|---|---|---|
| Chipset vendor / model | Qualcomm/SDX62 | ||
| Module FW version | FDE.F0.3.0.1.1.DO.004 | ||
| IOT completed information | 5G | Availability | S |
| Supported Band | n78/n79 | ||
| 4G | Availability | S | |
| Supported Band | Band 1/3/19/26/28/42 | ||
| Category | Cat.12 | ||
| DL CA | 5CC | ||
| UL CA | 2CC | ||
| 3G | Availability | NS | |
| Supported Band | NS | ||
| DL Category | NS | ||
| UL Category | NS | ||
| Function | CS Voice | NS | |
| VoLTE | NS | ||
| Data | S | ||
| SMS | S | ||
| eDRX | NS | ||
| PSM | NS | ||
| GPS | Standalone | S | |
| Assisted （Control Plane） |
NS | ||
| Module information | Interface | USB 3.1 Gen 2 × 1 / USB2.0 × 1 / PCIe × 1 | |
| Operation Temperature | -40°C - +85°C | ||
| Form Factor | M.2 | ||
| Dimension ※L×W×H(mm) | 42 × 30 × 2.6 | ||
| Weight（g） | 8g | ||
Update date:2024/2
