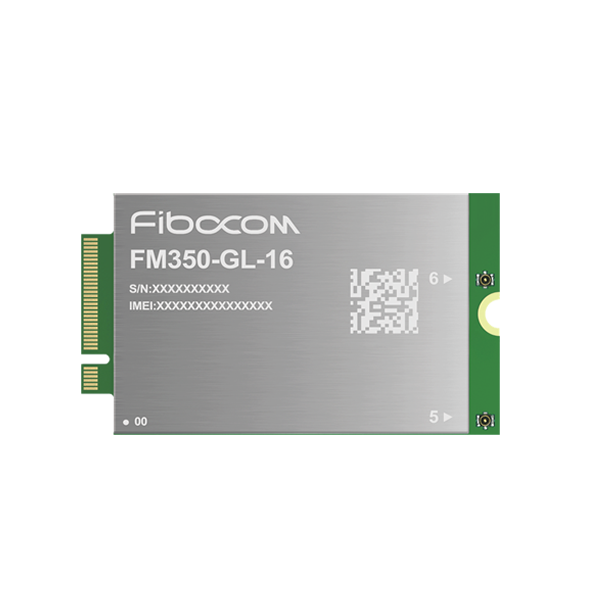

FM350-GL-16
FM350-GL-16 Fibocom Wireless Inc.
- . Small ,Slim M.2 form factor (30x52x2.3mm)
- . High speed data module, support LTE Cat16 & 3G fallback
- . Rx diversity for 3G/4G, 2x2 DL-MIMO & 256QAM
- . GNSS support (GPS, GLONASS, BeiDou, Galileo, QZSS)
- . Low power and low cost
- . Globally approved module
| IOT完了年月 | 2023年11月 |
|---|
| Radio Access technology | 4G/3G | ||
|---|---|---|---|
| Chipset vendor / model | MediaTek/MT6880 | ||
| Module FW version | 11600.0000.00.29.23.01 | ||
| IOT completed information | 5G | Availability | NS |
| Supported Band | NS | ||
| 4G | Availability | S | |
| Supported Band | Band 1/3/19/28/42 | ||
| Category | Cat.12 | ||
| DL CA | 5CC | ||
| UL CA | 2CC | ||
| 3G | Availability | S | |
| Supported Band | BandI | ||
| DL Category | Cat.24 | ||
| UL Category | Cat.7 | ||
| Function | CS Voice | NS | |
| VoLTE | NS | ||
| Data | S | ||
| SMS | S | ||
| eDRX | NS | ||
| PSM | NS | ||
| GPS | Standalone | S | |
| Assisted （Control Plane） |
NS | ||
| Module information | Interface | PCIe Gen3 X1 / USB 2.0 (For debug) | |
| Operation Temperature | -10°C - +55°C | ||
| Form Factor | M.2 | ||
| Dimension ※L×W×H(mm) | 30 x 52 x 2.3 | ||
| Weight（g） | ～8g | ||
Update date:2023/12
