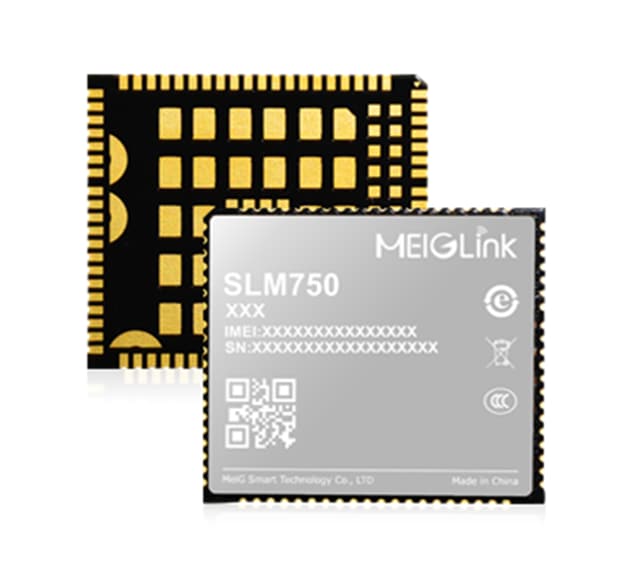

SLM750
SLM750 MeiG Smart Technology Co., Ltd.
The SLM750 wireless module features:
- LTE Cat.4, DL/UL max: 150Mbps / 50 Mbps
- DC-HSPA+: DL 42/UL 5.76 Mbps
- Embeded IP stack with IPv4 and IPv6 support
- Dimension: 32mm*29mm*2.8mm
- Operating temperature Range -30°C to +75°
- USB 2.0,Power on&off,I2C,UART,USIM,W_Disable,LED status,Wake_up in&out,ADC,GPIO,PCM, interface
- Support Windows,Linux 2.6.21 upper,Android4.0 upper os system
- Firmware update via USB
| IOT完了年月 | 2022年4月 |
|---|
| Radio Access technology | 4G/3G | ||
|---|---|---|---|
| Chipset vendor / model | Qualcomm/MDM9207 | ||
| Module FW version | SLM750-V_4.2.7_EQ101 | ||
| IOT completed information | 5G | Availability | NS |
| Supported Band | NS | ||
| 4G | Availability | S | |
| Supported Band | Band 1/3/19/28 | ||
| Category | Cat.4 | ||
| DL CA | NS | ||
| UL CA | NS | ||
| 3G | Availability | S | |
| Supported Band | Band I/VI/XIX | ||
| DL Category | Cat.24 | ||
| UL Category | Cat.6 | ||
| Function | CS Voice | NS | |
| VoLTE | NS | ||
| Data | S | ||
| SMS | S | ||
| eDRX | NS | ||
| PSM | NS | ||
| GPS | Standalone | NS | |
| Assisted （Control Plane） |
NS | ||
| Module information | Interface | USB 2.0 x 1 / Serial x 1 | |
| Operation Temperature | -40°C to +85° | ||
| Form Factor | LCC | ||
| Dimension ※L×W×H(mm) | 33 x 29 x 2.5 | ||
| Weight（g） | 5g | ||
Update date:2024/11
