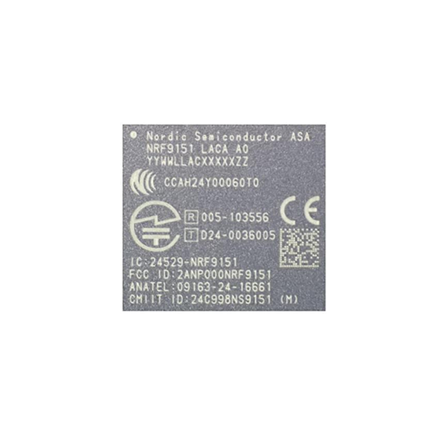

nRF9151
nRF9151 Nordic Semiconductor ASA
- ARM Cortex-M33 application processor solely for applications
- Full LTE modem, support 3GPP release 14 LTE-M/NB-IoT
- Integrated GNSS receiver, support GPS and QZSS
- ETSI DECT NR+, support massive mesh applications
- 3GPP Non-Terrestrial Network (NTN) support will be added in a future firmware release
| IOT完了年月 | 2025年1月 |
|---|
| Radio Access technology | LTE-M | ||
|---|---|---|---|
| Chipset vendor / model | Nordic Semiconductor ASA/nRF9121 | ||
| Module FW version | mfw_nrf91x1_2.0.2 | ||
| IOT completed information | 5G | Availability | NS |
| Supported Band | NS | ||
| 4G | Availability | S | |
| Supported Band | Band 1/3/19/28 | ||
| Category | Cat.M1 | ||
| DL CA | NS | ||
| UL CA | NS | ||
| 3G | Availability | NS | |
| Supported Band | NS | ||
| DL Category | NS | ||
| UL Category | NS | ||
| Function | CS Voice | NS | |
| VoLTE | NS | ||
| Data | S | ||
| SMS | S | ||
| eDRX | S | ||
| PSM | S | ||
| GPS | Standalone | S | |
| Assisted （Control Plane） |
NS | ||
| Module information | Interface | Serial x4, PWM x4, GPIO x32, ADC, I2S, PDM, PWM | |
| Operation Temperature | -40°C ~ +85°C | ||
| Form Factor | LGA | ||
| Dimension ※L×W×H(mm) | 12.1 × 11.1 × 1.2 | ||
| Weight（g） | 0.41g | ||
Update date:2025/4
