AG555Q-GL

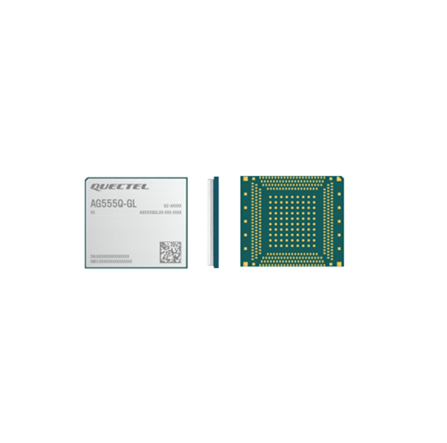

AG555Q-GL Quectel Wireless Solutions Co., Ltd.
- AG555Q-GL is one of the automotive-grade 5G NR Sub-6 GHz modules developed by Quectel, supporting 5G NR NSA mode. Adopting 3GPP Rel-15 technology
| IOT完了年月 | 2024年12月 |
|---|
| Radio Access technology | 5G/4G | ||
|---|---|---|---|
| Chipset vendor / model | Qualcomm/SA515M | ||
| Module FW version | BYA555QGLABR01A08M8G_OCPU | ||
| IOT completed information | 5G | Availability | S |
| Supported Band | Band n78/n79 | ||
| 4G | Availability | S | |
| Supported Band | Band 1/3/19/21/28/42 | ||
| Category | Cat.12 | ||
| DL CA | 5CC | ||
| UL CA | 2CC | ||
| 3G | Availability | NS | |
| Supported Band | NS | ||
| DL Category | NS | ||
| UL Category | NS | ||
| Function | CS Voice | NS | |
| VoLTE | S | ||
| Data | S | ||
| SMS | S | ||
| eDRX | NS | ||
| PSM | NS | ||
| GPS | Standalone | S | |
| Assisted （Control Plane） |
S | ||
| Module information | Interface | USB 2.0/3.0*1/PCIE 3.0*1/RGMII*1/etc. | |
| Operation Temperature | -35 °C to +75 °C | ||
| Form Factor | LGA | ||
| Dimension ※L×W×H(mm) | 42.0 × 47.5 × 3.45 | ||
| Weight（g） | 16.8g | ||
Update date:2025/1
