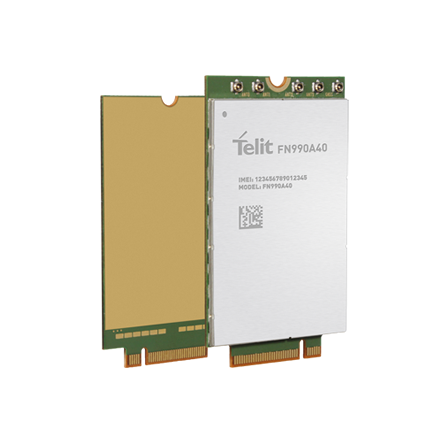

FN990A40 Telit Wireless Solutions
- FN990 data card is designed for global usage and supports all major sub-6 GHz frequency bands.
It incorporates support for all scenarios prescribed by the 3GPP Rel.16, including NSA, EN-DC, dynamic spectrum sharing between LTE and 5G and full 5G NR SA mode.
| IOT完了年月 | 2024年7月 |
|---|
| Radio Access technology | 5G/4G | ||
|---|---|---|---|
| Chipset vendor / model | Qualcomm/SDX65 | ||
| Module FW version | M0R.110005 | ||
| IOT completed information | 5G | Availability | S |
| Supported Band | Band n28/n78/n79 | ||
| 4G | Availability | S | |
| Supported Band | Band 1/3/19/26/28/42 | ||
| Category | Cat.12 | ||
| DL CA | 5CC | ||
| UL CA | 2CC | ||
| 3G | Availability | NS | |
| Supported Band | NS | ||
| DL Category | NS | ||
| UL Category | NS | ||
| Function | CS Voice | NS | |
| VoLTE | NS | ||
| Data | S | ||
| SMS | NS | ||
| eDRX | NS | ||
| PSM | NS | ||
| GPS | Standalone | S | |
| Assisted （Control Plane） |
S | ||
| Module information | Interface | USB 3.1 Gen 2 / PCIe Gen3 | |
| Operation Temperature | -40°C - + 85°C | ||
| Form Factor | M.2 | ||
| Dimension ※L×W×H(mm) | 30 x 52 x 2.25 | ||
| Weight（g） | 8.2g | ||
Update date:2024/9
