EM120R-GL

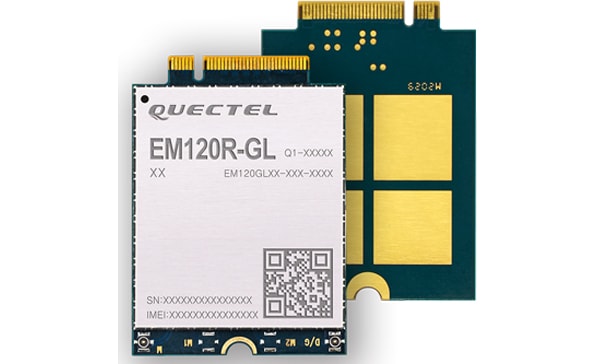

EM120R-GL Quectel Wireless Solutions Co., Ltd.
- Quectel EM120R-GL is an LTE Advanced Category 12 module. Adopting the 3GPP Release 14 technology, it delivers speed of 600 Mbps downlink and 150 Mbps uplink peak data rates, and is designed in M.2 form factor.
| IOT完了年月 | 2021年8月 |
|---|
| Radio Access technology | 4G/3G | ||
|---|---|---|---|
| Chipset vendor / model | Qualcomm/SDX24 | ||
| Module FW version | EM120RGLAUR02A07M4G (2020/12) EM120RGLAPR02A07M4G (2020/12) EM120RGLAUR02A09M4G (Latest Ver.) EM120RGLAPR02A09M4G (Latest Ver.) |
||
| IOT completed information | 5G | Availability | NS |
| Supported Band | NS | ||
| 4G | Availability | S | |
| Supported Band | Band 1/3/19/28/42 | ||
| Category | Cat.12 | ||
| DL CA | 3CC | ||
| UL CA | 2CC | ||
| 3G | Availability | S | |
| Supported Band | Band I/VI/XIX | ||
| DL Category | Cat.24 | ||
| UL Category | Cat.6 | ||
| Function | CS Voice | NS | |
| VoLTE | NS | ||
| Data | S | ||
| SMS | S | ||
| eDRX | NS | ||
| PSM | NS | ||
| GPS | Standalone | S | |
| Assisted （Control Plane） |
S | ||
| Module information | Interface | (U)SIM interfaces x 2 / PCM interface* x 1 / USB x 1 / Antenna tuner control interfaces* / COEX UART Interface* / GPIO | |
| Operation Temperature | -40°C ～ +85°C | ||
| Form Factor | M.2 | ||
| Dimension ※L×W×H(mm) | 42mm × 30mm × 2.3mm | ||
| Weight（g） | 6.75g | ||
Update date:2021/9
