SIM7672JP-M2
SIMCom SIM7672JP-M2
- Japanese bands coverage with compact size
- High performance Multi-GNSS receiver integrated
- Abundant software functionsand hardware interfaces
- High cost-effictive module suitable for IOT application without voice
- Low power consumption
※ When adopting Cat.1 bis compliant modules with a single antenna, the level of radio wave transmission/reception may decline depending on the area.
Please carefully check the level of radio wave in the area where your IoT device will be used.
| IOT完了年月 | 2025年3月 |
|---|
| Radio Access technology | 4G | ||
|---|---|---|---|
| Chipset vendor / model | Qualcomm / QCX216 | ||
| Module FW version | V1.9.03 | ||
| IOT completed information | 5G | Availability | NS |
| Supported Band | NS | ||
| 4G | Availability | S | |
| Supported Band | Band 1/3/19/26/28 | ||
| Category | Cat.1 bis | ||
| DL CA | NS | ||
| UL CA | NS | ||
| 3G | Availability | NS | |
| Supported Band | NS | ||
| DL Category | NS | ||
| UL Category | NS | ||
| Function | CS Voice | NS | |
| VoLTE | NS | ||
| Data | S | ||
| SMS | S | ||
| eDRX | - ※This feature is available but not verified in IOT. | ||
| eTAU ※1 | - ※This feature is available but not verified in IOT. | ||
| PSM | S | ||
| GPS | Standalone | S | |
| Assisted （Control Plane） |
NS | ||
| Module information | Interface | USB 2.0 x 1 / Serial x 1 | |
| Operation Temperature | -30°C - + 75°C | ||
| Form Factor | M.2 | ||

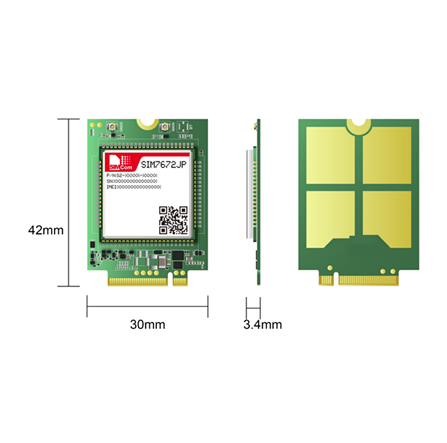

| Dimension ※L×W×H(mm) | 42 x 30 x 3.4 | ||
| Weight（g） | 4.8g | ||
※1 eTAU=Extended Periodic Timer T3412.
Update date:2025/4
