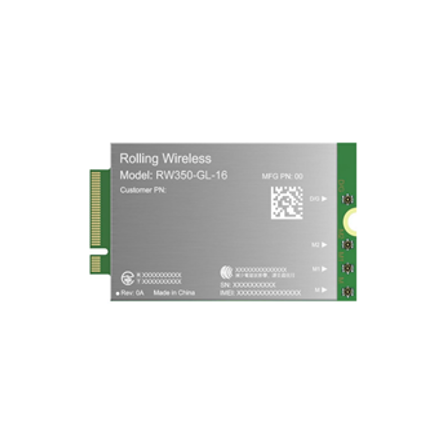

RW350-GL-16
RW350-GL-16 Rolling Wireless S.a.r.l.
- LTE／WCDMA
- Downlink LTE : 1Gbps
- Uplink LTE : 211Mbps
- LTE CA: DL 5CC / UL 2CC, DL 256QAM support UL 256QAM
- Global Approvals
| IOT完了年月 | 2024年9月 |
|---|
| Radio Access technology | 4G/3G | ||
|---|---|---|---|
| Chipset vendor / model | MediaTek/MT6880 | ||
| Module FW version | 11600.0000.00.29.23.01 | ||
| IOT completed information | 5G | Availability | NS |
| Supported Band | NS | ||
| 4G | Availability | S | |
| Supported Band | Band 1/3/19/28/42 | ||
| Category | Cat.12 | ||
| DL CA | 5CC | ||
| UL CA | 2CC | ||
| 3G | Availability | S | |
| Supported Band | BandⅠ | ||
| DL Category | Cat.24 | ||
| UL Category | Cat.7 | ||
| Function | CS Voice | NS | |
| VoLTE | NS | ||
| Data | S | ||
| SMS | S | ||
| eDRX | NS | ||
| PSM | NS | ||
| GPS | Standalone | S | |
| Assisted （Control Plane） |
NS | ||
| Module information | Interface | PCIe Gen3 X1 / USB 2.0 (For debug) | |
| Operation Temperature | -10°C - +55°C | ||
| Form Factor | M.2 | ||
| Dimension ※L×W×H(mm) | 30 x 52 x 2.3 | ||
| Weight（g） | ~8g | ||
Update date:2024/11
