T62M-EA

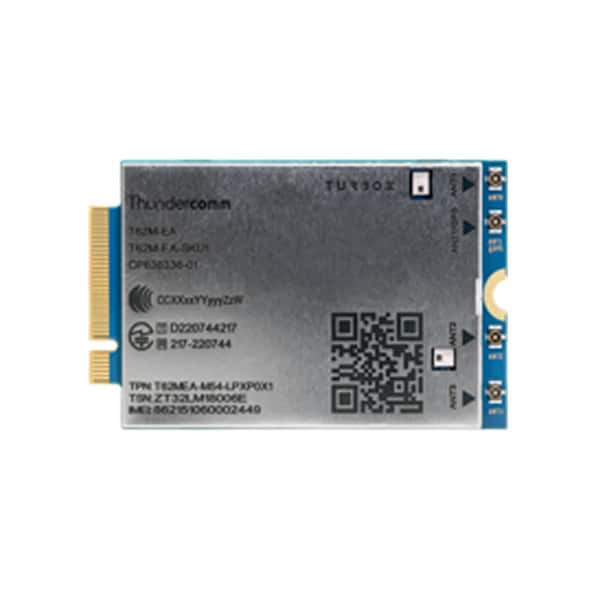

T62M-EA Thundercomm Technology Co., Ltd.
- 3GPP Release 16 technology
- 5G SA/NSA operation modes
- Global 5G spectrum bands supported
- High speed interface drivers for multi-OS
- OpenCPU with Comprehensive SDK
| IOT完了年月 | 2024年10月 |
|---|
| Radio Access technology | 5G/4G | ||
|---|---|---|---|
| Chipset vendor / model | Qualcomm/SDX62 | ||
| Module FW version | TurboXT62MPE31LE12DE205G.R01002 | ||
| IOT completed information | 5G | Availability | S |
| Supported Band | Band n28/n78/n79 | ||
| 4G | Availability | S | |
| Supported Band | Band 1/3/19/26/28/42 | ||
| Category | Cat.12 | ||
| DL CA | 5CC | ||
| UL CA | 2CC | ||
| 3G | Availability | NS | |
| Supported Band | NS | ||
| DL Category | NS | ||
| UL Category | NS | ||
| Function | CS Voice | NS | |
| VoLTE | NS | ||
| Data | S | ||
| SMS | NS | ||
| eDRX | NS | ||
| PSM | NS | ||
| GPS | Standalone | S | |
| Assisted （Control Plane） |
S | ||
| Module information | Interface | 1x USIM and 1x eSIM (Optional)/1x PCIe Gen3 1-lane (2-lane is optional)/1x USB3.1 SS/ 1x USB2.0 HS/GPIO | |
| Operation Temperature | -30 °C - +75 °C | ||
| Form Factor | M.2 | ||
| Dimension ※L×W×H(mm) | 52 x 30 x 2.15 | ||
| Weight（g） | 8.15g ±0.2g | ||
Update date:2024/11
