JP
T77W968C9

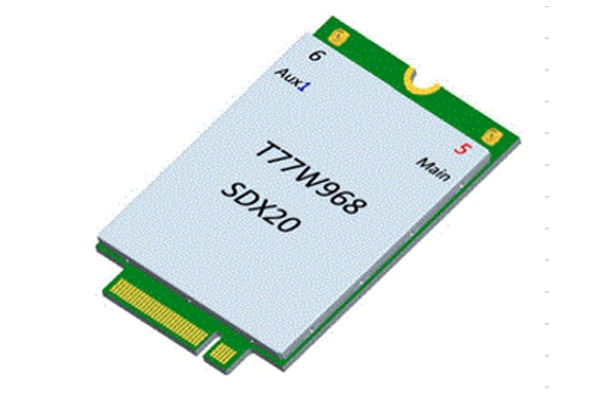

T77W968C9 Foxconn
- T77W968C9 is the data card solution that delivers wireless wide-area network (WWAN) connectivity for the LTE, UMTS and GPS/Glonass/Beidou protocols
| IOT完了年月 | 2020年2月 |
|---|
| Radio Access technology | 4G/3G | ||
|---|---|---|---|
| Chipset vendor / model | Qualcomm/SDX20 | ||
| Module FW version | T77W968.F2.0.0.1.0.DO.001 | ||
| IOT completed information | 5G | Availability | NS |
| Supported Band | NS | ||
| 4G | Availability | S | |
| Supported Band | Band 1/3/19/28 | ||
| Category | Cat.9 | ||
| DL CA | 3CC | ||
| UL CA | NS | ||
| 3G | Availability | S | |
| Supported Band | Band I/VI/XIX | ||
| DL Category | Cat.24 | ||
| UL Category | Cat.6 | ||
| Function | CS Voice | NS | |
| VoLTE | NS | ||
| Data | S | ||
| SMS | S | ||
| eDRX | NS | ||
| PSM | NS | ||
| GPS | Standalone | S | |
| Assisted （Control Plane） |
S | ||
| Module information | Interface | USB3.0 x 1 | |
| Operation Temperature | -30°C ～ +70°C | ||
| Form Factor | M.2 | ||
| Dimension ※L×W×H(mm) | 42mm × 30mm × 2.3mm | ||
| Weight（g） | 6g | ||
Update date:2021/10
お問い合わせ先
| メーカー | |
|---|---|
| 部署／担当者 | MTS SQA-ETS-CNSBG／Brady Lin |
| 電話番号 | +886-906-386-653 |
- 商品写真および画面はイメージです。実物と若干異なる場合があります。
