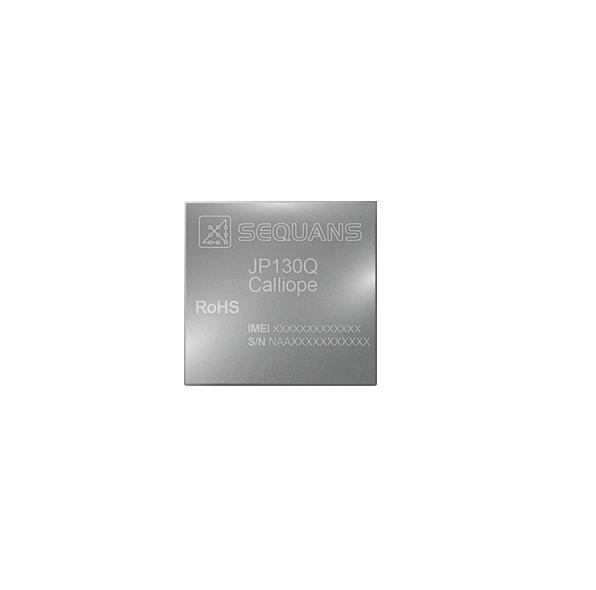

JP130Q Sequans Communications
- Operates on LTE bands 1 and 19
- Ultra small 22.5 x 22.5 x 1.5 mm LGA module
- Based on Sequans’ Calliope LTE Cat 1 Platform
- 3GPP Release 10; software-upgradeable to Release 11
- PTCRB compliant
- Category 1 throughput (10 Mbps DL/5 Mbps UL)
- Multi-band FDD and TDD capable
- Embedded IMS clients
- Compatible with Linux, Android, Windows and a wide range of embedded and realtime OSes
- USB 2.0 interfaces
- Fully tested and calibrated
- Pin-to-pin compatible with all Q series modules enabling single platform support for multiple LTE categories and multiple operators
| IOT完了年月 | 2022年12月 |
|---|
| Radio Access technology | 4G | ||
|---|---|---|---|
| Chipset vendor / model | Sequans Communications/Calliope SQN3223 | ||
| Module FW version | 4.3.2.1b | ||
| IOT completed information | 5G | Availability | NS |
| Supported Band | NS | ||
| 4G | Availability | S | |
| Supported Band | Band 1/19 | ||
| Category | Cat.1 | ||
| DL CA | NS | ||
| UL CA | NS | ||
| 3G | Availability | NS | |
| Supported Band | NS | ||
| DL Category | NS | ||
| UL Category | NS | ||
| Function | CS Voice | NS | |
| VoLTE | NS | ||
| Data | S | ||
| SMS | S | ||
| eDRX | NS | ||
| PSM | NS | ||
| GPS | Standalone | NS | |
| Assisted （Control Plane） |
NS | ||
| Module information | Interface | USB CDC-ECM x1, USB CDC-ACM x1 | |
| Operation Temperature | -30℃ - +85℃ | ||
| Form Factor | LGA | ||
| Dimension ※L×W×H(mm) | 22.53 x 22.66 x 1.406 | ||
| Weight（g） | 2.04g | ||
Update date:2023/01
お問い合わせ先
| メーカー | |
|---|---|
| 部署／担当者 | シークアンス コミュニケーションズ ジャパン 鈴木英一 |
| 電話番号 | 090-3003-9710 |
