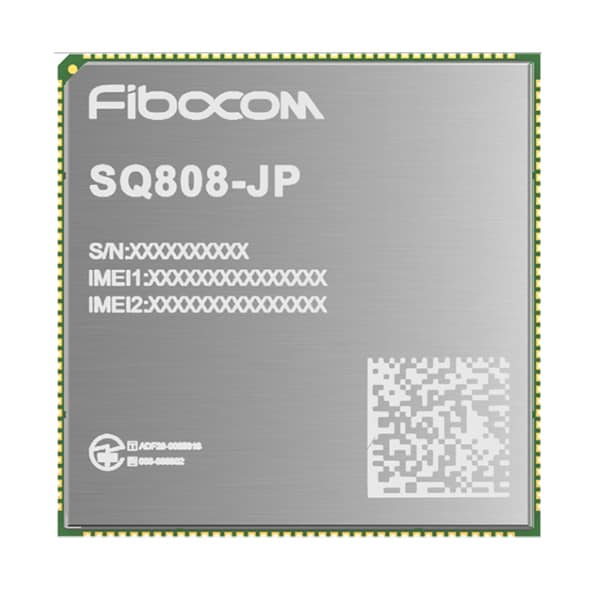

SQ808-JP Fibocom Wireless Inc.
- SQ808-JP is a high-performance LTE Cat 4 smart module launched by Fibocom. Based on Qualcomm’s ARM Cortex-A53 64-bit quad-core processor, equipped with an open smart Android operating system.
The SQ808-JP can serve a wide range of IoT applications including AI robots, smart POS, PDAs, vending machines, delivery lockers, law enforcement equipment and in-car entertainment systems.
| IOT完了年月 | 2021年11月 |
|---|
| Radio Access technology | 4G/3G | ||
|---|---|---|---|
| Chipset vendor / model | Qualcomm/QCM2150 | ||
| Module FW version | SQ808-JP-Q62.01.104 | ||
| IOT completed information | 5G | Availability | NS |
| Supported Band | NS | ||
| 4G | Availability | S | |
| Supported Band | Band 1/3/19/21/28 | ||
| Category | Cat.4 | ||
| DL CA | NS | ||
| UL CA | NS | ||
| 3G | Availability | S | |
| Supported Band | Band I/VI/XIX | ||
| DL Category | Cat.24 | ||
| UL Category | Cat.6 | ||
| Function | CS Voice | NS | |
| VoLTE | NS | ||
| Data | S | ||
| SMS | S | ||
| eDRX | NS | ||
| PSM | NS | ||
| GPS | Standalone | S | |
| Assisted （Control Plane） |
S | ||
| Module information | Interface | USB2.0/Antenna (TRX /DRX /GNSS /WIFI /BT) /SIM1.8V /UART /I2C /I2S /SPI /IIC /SDIO /GPIO | |
| Operation Temperature | -25°C ～ +75°C | ||
| Form Factor | LGA | ||
| Dimension ※L×W×H(mm) | 41mm × 41mm × 2.8mm | ||
| Weight（g） | 9.3g | ||
Update date:2021/12
