T99W175

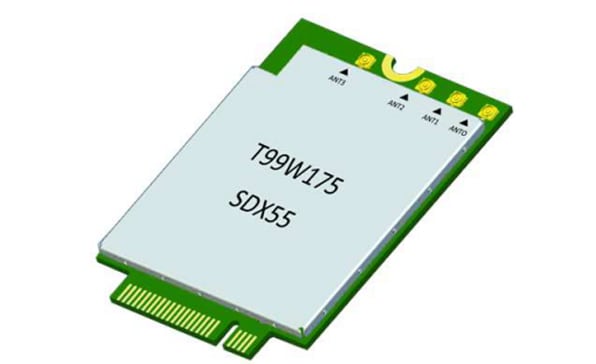

T99W175 Foxconn
- T99W175 is designed to enable wireless data connectivity for notebook computer or any other device compatible with the PCI Express M.2 Specification 3042 type Key B slot. T99W175 is the data card solution that delivers wireless wide-area network (WWAN) connectivity for the 5GNR (Sub 6G), LTE, UMTS (HSDPA/HSUPA/HSPA+DC-HSPA+) and GPS/Glonass/ Beidou/ Galileo protocols in one hardware configuration.
| IOT完了年月 | 2021年3月 |
|---|
| Radio Access technology | 5G/4G/3G | ||
|---|---|---|---|
| Chipset vendor / model | Qualcomm/SDX55 | ||
| Module FW version | T99W175.F0.6.0.0.6.DO.008 | ||
| IOT completed information | 5G | Availability | S |
| Supported Band | n78/n79 | ||
| 4G | Availability | S | |
| Supported Band | Band 1/3/19/28/42 | ||
| Category | Cat.11 | ||
| DL CA | 5CC | ||
| UL CA | NS | ||
| 3G | Availability | S | |
| Supported Band | NS | ||
| DL Category | Cat.24 | ||
| UL Category | Cat.6 | ||
| Function | CS Voice | NS | |
| VoLTE | NS | ||
| Data | S | ||
| SMS | S | ||
| eDRX | NS | ||
| PSM | NS | ||
| GPS | Standalone | S | |
| Assisted （Control Plane） |
S | ||
| Module information | Interface | PCIe3.0. | |
| Operation Temperature | -30°C ～ +70°C | ||
| Form Factor | M.2 | ||
| Dimension ※L×W×H(mm) | 42mm × 30mm × 2.65mm | ||
| Weight（g） | 8g | ||
Update date:2024/11
お問い合わせ先
| メーカー | |
|---|---|
| 部署／担当者 | MTS SQA-ETS-CNSBG / Brady Lin |
| 電話番号 | +886-906-386653 |
