EG915Q-JP

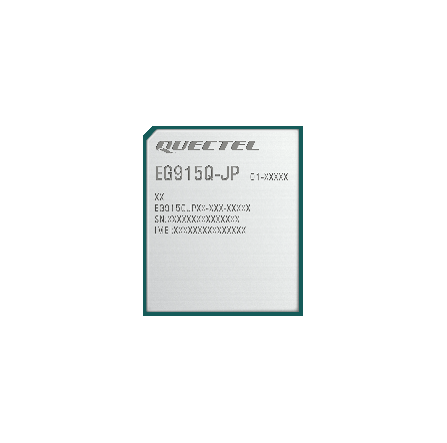

Quectel wireless Solutions Co.,Ltd. EG915Q-JP
Quectel EG915Q-JP series is LTE Cat 1 bis module optimized specially for M2M and IoT applications.
Adopting the 3GPP Rel-14 LTE technology, it delivers maximum data rates up to 10 Mbps downlink and 5 Mbps uplink.
Designed in a compact and unified form factor.
※ When adopting Cat.1 bis compliant modules with a single antenna, the level of radio wave transmission/reception may decline depending on the area.
Please carefully check the level of radio wave in the area where your IoT device will be used.
| IOT完了年月 | 2025年3月 |
|---|
| Radio Access technology | 4G | ||
|---|---|---|---|
| Chipset vendor / model | Qualcomm / QCX216 | ||
| Module FW version | EG915QJPLGR01A05M04 | ||
| IOT completed information | 5G | Availability | NS |
| Supported Band | NS | ||
| 4G | Availability | S | |
| Supported Band | Band 1/3/19/26/28 | ||
| Category | Cat.1 bis | ||
| DL CA | NS | ||
| UL CA | NS | ||
| 3G | Availability | NS | |
| Supported Band | NS | ||
| DL Category | NS | ||
| UL Category | NS | ||
| Function | CS Voice | NS | |
| VoLTE | NS | ||
| Data | S | ||
| SMS | S | ||
| eDRX | - ※This feature is available but not verified in IOT. | ||
| eTAU ※1 | - ※This feature is available but not verified in IOT. | ||
| PSM | S | ||
| GPS | Standalone | S | |
| Assisted （Control Plane） |
NS | ||
| Module information | Interface | GRFC X 2 antenna X 2 (MAIN、GNSS) |
|
| Operation Temperature | -35℃ - +75℃ | ||
| Form Factor | LGA | ||
| Dimension ※L×W×H(mm) | 17.7 × 15.8 × 2.4 | ||
| Weight（g） | 2g | ||
※1 eTAU=Extended Periodic Timer T3412.
Update date:2025/4
