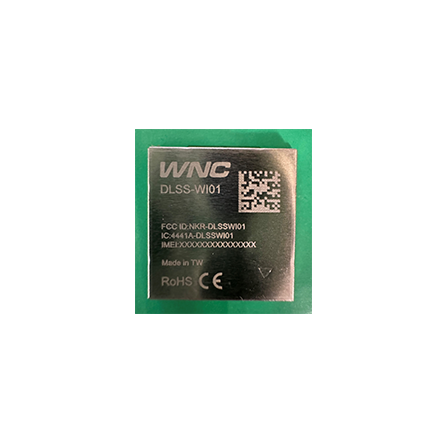

WNC DLSS-WI01
WNC DLSS-WI01
- 3GPP LTE Release 14/15 Cat M1 module
- Global band support. Single SKU design (617 MHz to 2.2 GHz)
- Output power +23dBm, +20dBm, +14dBm
- Supports external SIM, eSIM, integrated SIM, and integrated eSIM
- Includes embedded LWM2M client, TCP/IP stack,
| IOT完了年月 | 2024年11月 |
|---|
| Radio Access technology | LTE-M | ||
|---|---|---|---|
| Chipset vendor / model | Sequans Communications/SQN3430 | ||
| Module FW version | 8.2.1.0 | ||
| IOT completed information | 5G | Availability | NS |
| Supported Band | NS | ||
| 4G | Availability | S | |
| Supported Band | Band 1/19 | ||
| Category | Cat.M1 | ||
| DL CA | Cat.M1 | ||
| UL CA | Cat.M1 | ||
| 3G | Availability | NS | |
| Supported Band | NS | ||
| DL Category | NS | ||
| UL Category | NS | ||
| Function | CS Voice | NS | |
| VoLTE | NS | ||
| Data | S | ||
| SMS | S | ||
| eDRX | S | ||
| PSM | S | ||
| GPS | Standalone | NS | |
| Assisted （Control Plane） |
NS | ||
| Module information | Interface | HS UART | |
| Operation Temperature | -40°C 〜 + 85°C | ||
| Form Factor | LGA | ||
| Dimension ※L×W×H(mm) | 16.3mm × 17mm × 1.85mm | ||
| Weight（g） | 0.85g | ||
Update date:2025/4
お問い合わせ先
| メーカー | |
|---|---|
| 部署／担当者 | PM / Diana YW Cheng |
