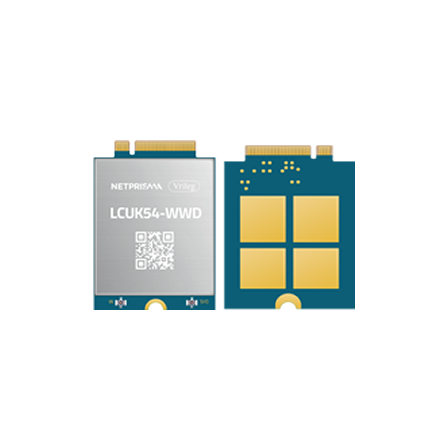

LCUK54-WWD
LCUK54-WWD NETPRISMA INC.
- LTE-A Cat 6 module with M.2 form factor
- Support DL 2 Carrier Aggregation and 64QAM
- Worldwide LTE-A and UMTS/ HSPA+ coverage
- Built-in eSIM (optional), DSSS (Dual SIM Single Standby)
- Low power mode
- Operating Temperature -35 °C to +75 °C
- Extended Temperature -40 °C to +85 °C
| IOT完了年月 | 2024年9月 |
|---|
| Radio Access technology | 4G/3G | ||
|---|---|---|---|
| Chipset vendor / model | Qualcomm/SDX12 | ||
| Module FW version | LCUK54WWDBL0102 | ||
| IOT completed information | 5G | Availability | NS |
| Supported Band | NS | ||
| 4G | Availability | S | |
| Supported Band | Band 1/3/19/26/28/42 | ||
| Category | Cat.6 | ||
| DL CA | 2CC | ||
| UL CA | NS | ||
| 3G | Availability | S | |
| Supported Band | Band I/VI/XIX | ||
| DL Category | Cat.24 | ||
| UL Category | Cat.6 | ||
| Function | CS Voice | NS | |
| VoLTE | NS | ||
| Data | S | ||
| SMS | S | ||
| eDRX | NS | ||
| PSM | NS | ||
| GPS | Standalone | S | |
| Assisted （Control Plane） |
S | ||
| Module information | Interface | USB 2.0/3.0 x 1 | |
| Operation Temperature | -25 °C to +75 °C | ||
| Form Factor | M.2 | ||
| Dimension ※L×W×H(mm) | 30.0 × 42.0 × 2.3 | ||
| Weight（g） | 6.2 | ||
Update date:2024/11
