LCUK54-WRD
LCUK54-WRD NETPRISMA INC.

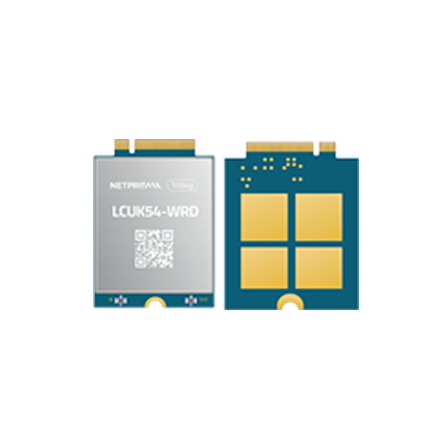

- NetPrisma LCUK54-WRD is an LTE Advanced Category 6 module. Adopting the 3GPP Release 12 technology, the module supports a theoretical peak data rate of 300 Mbps in the downlink and a theoretical peak data rate of 50 Mbps in the uplink. Designed in M.2 form factor.
| IOT完了年月 | 2024年9月 |
|---|
| Radio Access technology | 4G/3G | ||
|---|---|---|---|
| Chipset vendor / model | Qualcomm/SDX12 | ||
| Module FW version | LCUK54WRDBL0103 | ||
| IOT completed information | 5G | Availability | NS |
| Supported Band | NS | ||
| 4G | Availability | S | |
| Supported Band | Band 1/3/19/26/28 | ||
| Category | Cat.6 | ||
| DL CA | 2CC | ||
| UL CA | NS | ||
| 3G | Availability | S | |
| Supported Band | Band I/VI/XIX | ||
| DL Category | Cat.24 | ||
| UL Category | Cat.6 | ||
| Function | CS Voice | NS | |
| VoLTE | NS | ||
| Data | S | ||
| SMS | S | ||
| eDRX | NS | ||
| PSM | NS | ||
| GPS | Standalone | S | |
| Assisted （Control Plane） |
S | ||
| Module information | Interface | USB 2.0 x 1 | |
| Operation Temperature | -25 °C to +75 °C | ||
| Form Factor | M.2 | ||
| Dimension ※L×W×H(mm) | 42.0 × 30.0 × 2.3 | ||
| Weight（g） | 6.2g | ||
Update date:2024/11
