JP
LCUR57-WWD

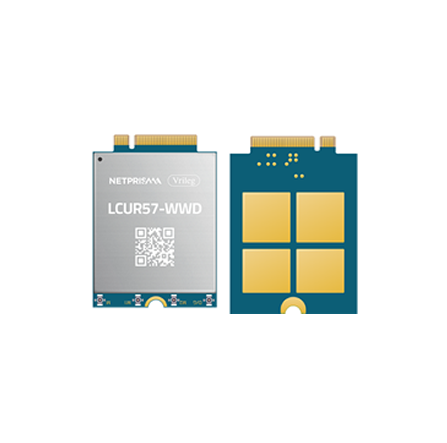

LCUR57-WWD NETPRISMA INC.
- NetPrisma LCUR57-WWD is an LTE Advanced Category 16 module. Adopting the 3GPP Release 14 technology, it delivers speed of 1.0 Gbps downlink and 150 Mbps uplink peak data rates, and is designed in M.2 form factor.
| IOT完了年月 | 2024年9月 |
|---|
| Radio Access technology | 4G/3G | ||
|---|---|---|---|
| Chipset vendor / model | Qualcomm/SDX24 | ||
| Module FW version | LCUR57WWDBL0203 | ||
| IOT completed information | 5G | Availability | NS |
| Supported Band | NS | ||
| 4G | Availability | S | |
| Supported Band | Band 1/3/19/26/28/42 | ||
| Category | Cat.12 | ||
| DL CA | 5CC | ||
| UL CA | 2CC | ||
| 3G | Availability | S | |
| Supported Band | Band I/VI/XIX | ||
| DL Category | Cat.24 | ||
| UL Category | Cat.6 | ||
| Function | CS Voice | NS | |
| VoLTE | NS | ||
| Data | S | ||
| SMS | S | ||
| eDRX | NS | ||
| PSM | NS | ||
| GPS | Standalone | S | |
| Assisted （Control Plane） |
S | ||
| Module information | Interface | USB 2.0/3.0 x 1 | |
| Operation Temperature | -25°C - +75°C | ||
| Form Factor | M.2 | ||
| Dimension ※L×W×H(mm) | 42.0×30.0×2.3 | ||
| Weight（g） | 6.8 | ||
Update date:2024/11
