JP

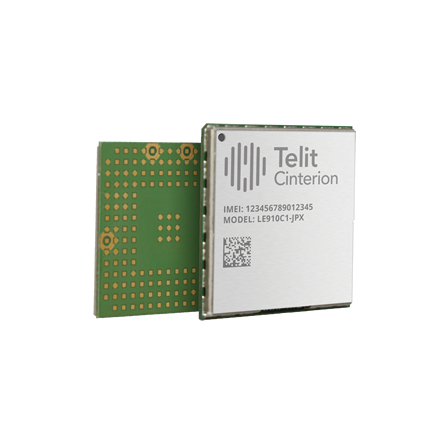

LE910C1-JPX
LE910C1-JPX Telit Wireless Solutions
- LE910C1-JPX is a variant for Japan based on LE910C1-APX. That is LTE Cat 1 module supporting multiple LTE bands. It includes GNSS receiver. xE910 Telit unified form factor.
| IOT完了年月 | 2024年8月 |
|---|
| Radio Access technology | 4G | ||
|---|---|---|---|
| Chipset vendor / model | Qualcomm/MDM9207 | ||
| Module FW version | M0F.903007 | ||
| IOT completed information | 5G | Availability | NS |
| Supported Band | NS | ||
| 4G | Availability | S | |
| Supported Band | Band 1/19 | ||
| Category | Cat.1 | ||
| DL CA | NS | ||
| UL CA | NS | ||
| 3G | Availability | NS | |
| Supported Band | NS | ||
| DL Category | NS | ||
| UL Category | NS | ||
| Function | CS Voice | NS | |
| VoLTE | S | ||
| Data | S | ||
| SMS | S | ||
| eDRX | NS | ||
| PSM | NS | ||
| GPS | Standalone | S | |
| Assisted （Control Plane） |
NS | ||
| Module information | Interface | USB 2.0 / Serial | |
| Operation Temperature | -40°C - + 85°C | ||
| Form Factor | LGA | ||
| Dimension ※L×W×H(mm) | 28x28x2.2 | ||
| Weight（g） | 5g | ||
Update date:2024/9
