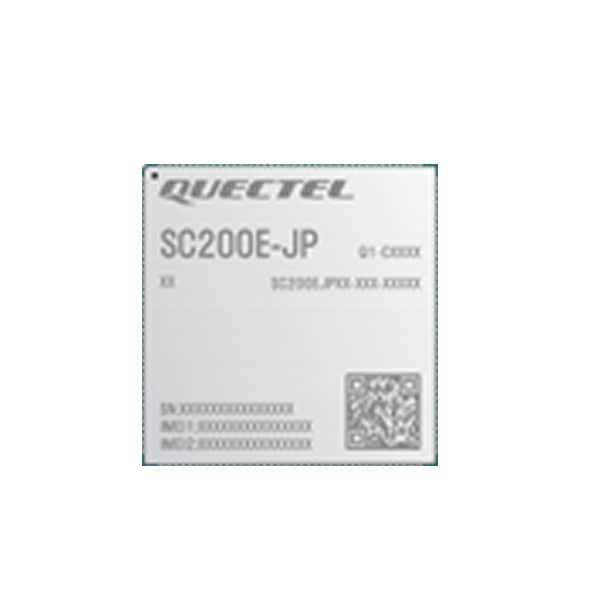

SC200E-JP
SC200E-JP Quectel Wireless Solutions Co., Ltd.
- SC200E series is Quectel’s new generation of multi-mode Smart LTE Cat 4 module. Based on Qualcomm 64-bit quadcore Cortex-A53 processors with built-in AdrenoTM 702 GPU, it is ideal for both industrial and consumer applications requiring high data rate, multimedia functions and long lifetime support. SC200E series is available in six variants:
SC200E-CE, SC200E-EM, SC200E-NA, SC200E-JP, Wi-Fi & Bluetooth only version SC200E-WF and Global operator version SC200E-GL.
| IOT完了年月 | 2025年5月 |
|---|
| Radio Access technology | 4G | ||
|---|---|---|---|
| Chipset vendor / model | Qualcomm/QCM2290 | ||
| Module FW version | SC200EJPDAR13A02 | ||
| IOT completed information | 5G | Availability | NS |
| Supported Band | NS | ||
| 4G | Availability | S | |
| Supported Band | Band 1/3/19/21/28 | ||
| Category | Cat.4 | ||
| DL CA | NS | ||
| UL CA | NS | ||
| 3G | Availability | NS | |
| Supported Band | NS | ||
| DL Category | NS | ||
| UL Category | NS | ||
| Function | CS Voice | NS | |
| VoLTE | S | ||
| Data | S | ||
| SMS | S | ||
| eDRX | NS | ||
| PSM | NS | ||
| GPS | Standalone | S | |
| Assisted （Control Plane） |
S | ||
| Module information | Interface | LCM/Camera/Touch Panel/Audio/Video/USB/(U)SIM/UART/SD Card/ADC/I2C/SPI/PWRKEY/GPIO/Antenna | |
| Operation Temperature | -35 °C to +75 °C | ||
| Form Factor | LCC + LGA | ||
| Dimension ※L×W×H(mm) | 40.5 × 40.5 × 2.85 | ||
| Weight（g） | Approx. 10.3g | ||
Update date:2025/6
