ME3630J2AM

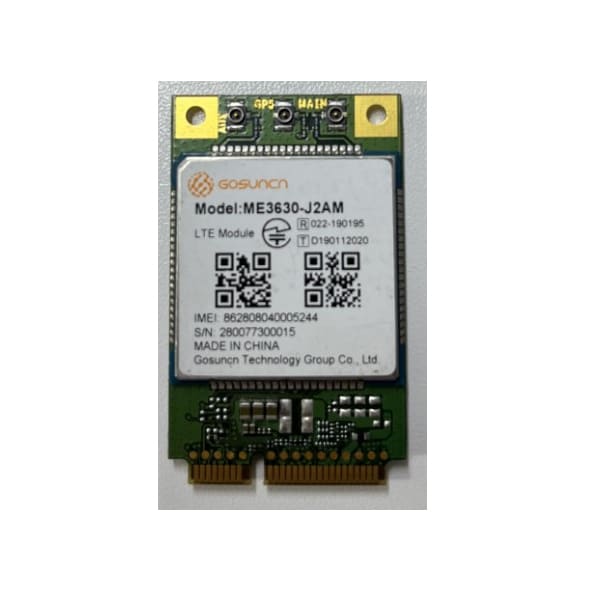

ME3630J2AM GOSUNCNWELINK
- LCC Form Factor (80 pins)；
- LTE FDD: B1, B3, B5, B7,B8, B18, B19, B21
- LTE TDD B41
- WCDMA: B1, B5, B6, B8, B19
- BD/GLONASS/GPS
- LTE Cat.4
| IOT完了年月 | 2022年9月 |
|---|
| Radio Access technology | 4G/3G | ||
|---|---|---|---|
| Chipset vendor / model | Qualcomm/ME3630-MB_A | ||
| Module FW version | ME3630J2AMV1.0B02 | ||
| IOT completed information | 5G | Availability | NS |
| Supported Band | NS | ||
| 4G | Availability | S | |
| Supported Band | Band 1,3,19,21 | ||
| Category | Cat.4 | ||
| DL CA | NS | ||
| UL CA | NS | ||
| 3G | Availability | S | |
| Supported Band | Band 1,19 | ||
| DL Category | Cat.24 | ||
| UL Category | Cat.6 | ||
| Function | CS Voice | NS | |
| VoLTE | NS | ||
| Data | S | ||
| SMS | S | ||
| eDRX | NS | ||
| PSM | NS | ||
| GPS | Standalone | NS | |
| Assisted （Control Plane） |
NS | ||
| Module information | Interface | USB 2.0 x 1 / Serial x 1 | |
| Operation Temperature | -30℃ to +75℃ | ||
| Form Factor | Mini PCI Express | ||
| Dimension ※L×W×H(mm) | 30× 30×2.3 | ||
| Weight（g） | About 4.0g | ||
Update date:2024/11
お問い合わせ先
| メーカー | |
|---|---|
| 部署／担当者 | Technical Management |
| 電話番号 | ⁺81-70-1541-0086 |
