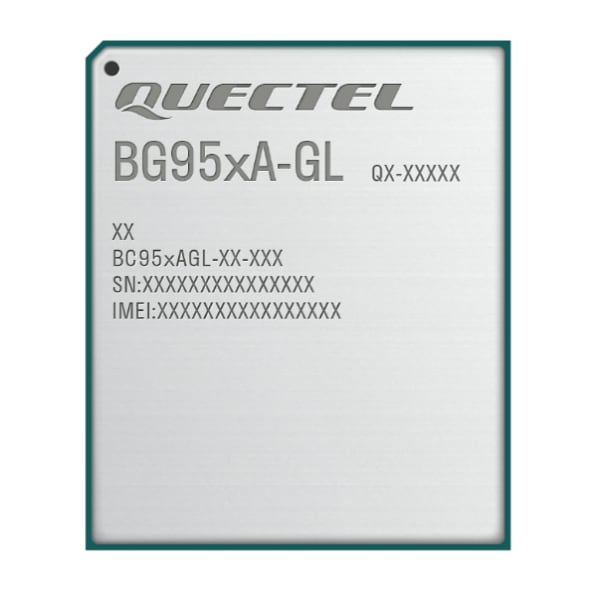

BG951A-GL

BG951A-GL　Quectel Wireless Solutions Co., Ltd.

• The BG951A-GL is a 5G-ready ultra-compact LPWA module with an independent GNSS engine, which supports LTE Cat M1 bands. The module is fully compliant with the 3GPP Rel-14 specification and provides global carrier band combinations. It features the MIPS 5150 processor and the ultra-low power consumption by leveraging the integrated RAM and flash to achieve extremely low current consumption in various standby/hibernation modes, including 3GPP PSM and e-I-DRX. In addition, the BG951A-GL contains an independent GNSS engine that supports GPS, GLONASS, Galileo, Beidou, QZSS.
  The BG951A-GL module boasts a comprehensive hardware-based security feature - Integrated Security Elements (ISE). With an ultra-compact SMT form factor of 19.9 mm × 23.6 mm × 2.2 mm and a high integration level, the module enables integrators and developers to easily design their applications and take advantage of the module’s low-power consumption and mechanical intensity. The BG951A-GL’s advanced LGA package allows for fully automated manufacturing required for high-volume applications.
