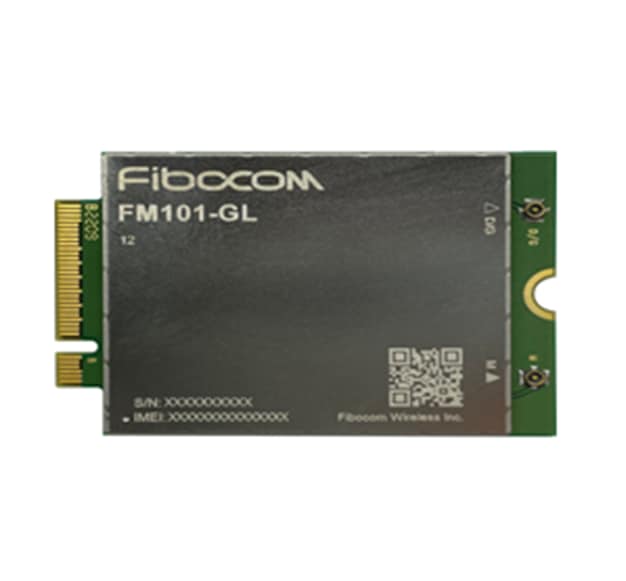

FM101-GL-12
FM101-GL-12 Fibocom Wireless Inc.
- LTE／WCDMA
- Downlink LTE : 600Mbps (Cat12)
- Uplink LTE : 150Mbps (Cat13)
- DL 3CA on 3 bands, DL 256QAM support & UL 64QAM
- Global Approvals
| IOT完了年月 | 2022年7月 |
|---|
| Radio Access technology | 4G/3G | ||
|---|---|---|---|
| Chipset vendor / model | Qualcomm/SDX12 | ||
| Module FW version | 19501.0000.00.01.01.34 | ||
| IOT completed information | 5G | Availability | NS |
| Supported Band | NS | ||
| 4G | Availability | S | |
| Supported Band | Band 1/3/19/28/42 | ||
| Category | Cat.12 | ||
| DL CA | 3CC | ||
| UL CA | NS | ||
| 3G | Availability | S | |
| Supported Band | Band I/VI/XIX | ||
| DL Category | Cat.24 | ||
| UL Category | Cat.6 | ||
| Function | CS Voice | NS | |
| VoLTE | NS | ||
| Data | S | ||
| SMS | S | ||
| eDRX | NS | ||
| PSM | NS | ||
| GPS | Standalone | S | |
| Assisted （Control Plane） |
NS | ||
| Module information | Interface | USIM: 3V/1.8V USB 2.0 & 3.0 MIPI I2C GPIO |
|
| Operation Temperature | -10°C ～+55°C | ||
| Form Factor | M.2 | ||
| Dimension ※L×W×H(mm) | 30 x 42 x 2.3mm | ||
| Weight（g） | About 5.8 g | ||
Update date:2024/11
