RXM-G1

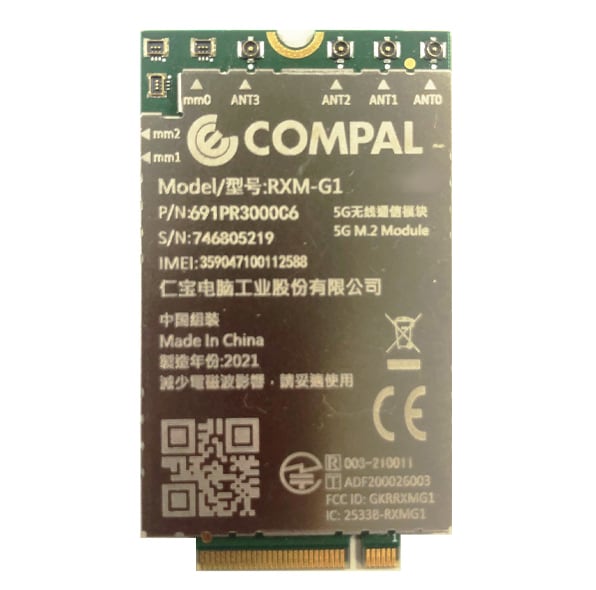

RXM-G1 Compal Electronics,Inc.
- Support global 5G Sub6 SA/NSA and mmWave bands, and is compatible with LTE/WCDMA standards.
- Support 5G NR R15, LTE R15 with DL Cat.20 and UL Cat.13
- Support GPS, Glonass, Beidou, Galileo
- Comply with global regulatory and compliance certification
*IOT for SA and mmW not performed
| IOT完了年月 | 2021年12月 |
|---|
| Radio Access technology | 5G/4G/3G | ||
|---|---|---|---|
| Chipset vendor / model | Qualcomm/SDX55 | ||
| Module FW version | RXMG1.20.00.257_0R13 | ||
| IOT completed information | 5G | Availability | S |
| Supported Band | Band n78/n79 | ||
| 4G | Availability | S | |
| Supported Band | Band 1/3/19/28/42 | ||
| Category | Cat.12 | ||
| DL CA | 5CC | ||
| UL CA | 2CC | ||
| 3G | Availability | S | |
| Supported Band | BandⅠ | ||
| DL Category | Cat.24 | ||
| UL Category | Cat.6 | ||
| Function | CS Voice | NS | |
| VoLTE | NS | ||
| Data | S | ||
| SMS | S | ||
| eDRX | NS | ||
| PSM | NS | ||
| GPS | Standalone | NS | |
| Assisted （Control Plane） |
S | ||
| Module information | Interface | USB 2.0 HS/3.0/3.1 SS Gen2 PCIe Gen3 1-lane x1 | |
| Operation Temperature | -10°C ～ +55°C | ||
| Form Factor | M.2 | ||
| Dimension ※L×W×H(mm) | 52mm × 30mm × 2.25mm | ||
| Weight（g） | 20g | ||
Update date:2024/11
お問い合わせ先
| メーカー | |
|---|---|
| 部署／担当者 | Sales ／ Kempo Hsu |
| 電話番号 | +81-70-8367-2908 |
- 商品写真および画面はイメージです。実物と若干異なる場合があります。
