JP

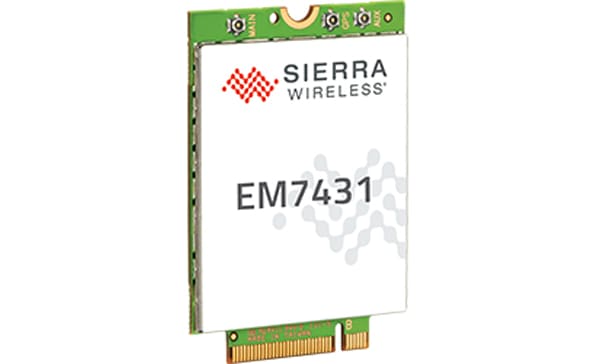

EM7431
EM7431 Sierra Wireless, Inc.
- 低コスト LTE Cat.7 module(UL-CA対応)
- SMS, GNSS(GPS, Glonass, Galileo, BeiDou/A-GPS)対応
- Fast Dormancy,ETWS
- Free FOTA対応
- Windows10, Linux, Android対応
| IOT完了年月 | 2021年4月 |
|---|
| Radio Access technology | 4G/3G | ||
|---|---|---|---|
| Chipset vendor / model | Qualcomm/MDM9650 | ||
| Module FW version | SWI9X50C_01.14.03.00 | ||
| IOT completed information | 5G | Availability | NS |
| Supported Band | NS | ||
| 4G | Availability | S | |
| Supported Band | Band 1/3/19/42 | ||
| Category | Cat.7 | ||
| DL CA | 2CC | ||
| UL CA | NS | ||
| 3G | Availability | S | |
| Supported Band | Band I/VI/XIX | ||
| DL Category | Cat.24 | ||
| UL Category | Cat.6 | ||
| Function | CS Voice | NS | |
| VoLTE | NS | ||
| Data | S | ||
| SMS | S | ||
| eDRX | NS | ||
| PSM | NS | ||
| GPS | Standalone | S | |
| Assisted （Control Plane） |
S | ||
| Module information | Interface | USB | |
| Operation Temperature | -40°C 〜 + 85°C | ||
| Form Factor | M.2 | ||
| Dimension ※L×W×H(mm) | 42mm × 30mm × 2.3mm | ||
| Weight（g） | 6.5g | ||
Update date:2021/7
お問い合わせ先
| メーカー | |
|---|---|
| 部署／担当者 | OEM solution ／ - |
| 電話番号 | +81-3-6717-6030 |
