JP
FN980

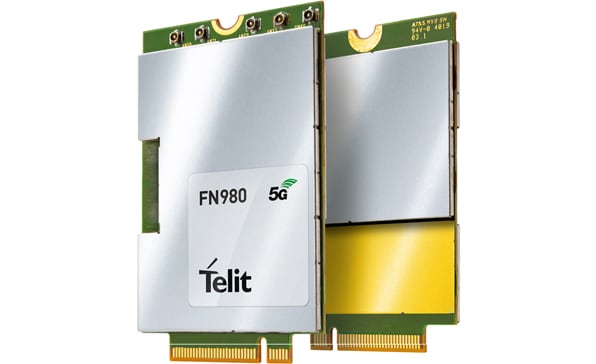

FN980 Telit Wireless Solutions
- Designed for global use, the FN980 of 5G sub-6 FDD and TDD. It supports of SA and NSA operations, 5G core network
Opt. 3a/3x and Opt. 2 for full network compatibility. 4G Cat 20 up to 7 CA. 3G HSPA+ Rel. 8 for fallback to legacy networks. Standard M.2 (NGFF) data card form factor.GNSS receiver with double frequency GPS (Band L1/L5)
*IOT for SA not performed
| IOT完了年月 | 2021年1月 |
|---|
| Radio Access technology | 5G/4G/3G | ||
|---|---|---|---|
| Chipset vendor / model | Qualcomm/SDX55 | ||
| Module FW version | M0H.030201 | ||
| IOT completed information | 5G | Availability | S |
| Supported Band | n78,n79 | ||
| 4G | Availability | S | |
| Supported Band | Band 1/3/19/28/42 | ||
| Category | Cat.12 | ||
| DL CA | 5CC | ||
| UL CA | 2CC | ||
| 3G | Availability | S | |
| Supported Band | Band I/VI/XIX | ||
| DL Category | Cat.24 | ||
| UL Category | Cat.6 | ||
| Function | CS Voice | S | |
| VoLTE | S | ||
| Data | S | ||
| SMS | S | ||
| eDRX | NS | ||
| PSM | NS | ||
| GPS | Standalone | S | |
| Assisted （Control Plane） |
NS | ||
| Module information | Interface | USB 3.1 Gen 2 / Serial | |
| Operation Temperature | -40°C ～ +85°C | ||
| Form Factor | M.2 | ||
| Dimension ※L×W×H(mm) | 30mm × 50mm × 3.5mm | ||
| Weight（g） | 10.3g | ||
Update date:2024/11
お問い合わせ先
| メーカー | |
|---|---|
| 部署／担当者 | Sales / Osamu Sato |
| 電話番号 | +81-3-5412-7650 |
- 商品写真および画面はイメージです。実物と若干異なる場合があります。
