PLS62-W

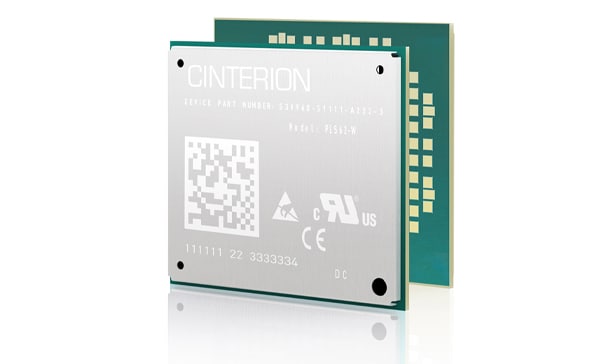

PLS62-W Telit Wireless Solutions
- LTE Cat.1
- Footprint Compatibility (LGA-156pad)
- Extended Tempreture range
- MS windows/Linux/Android Support
| IOT完了年月 | 2020年11月 |
|---|
| Radio Access technology | 4G/3G | ||
|---|---|---|---|
| Chipset vendor / model | INTEL/XMM7160 | ||
| Module FW version | v02.010 | ||
| IOT completed information | 5G | Availability | NS |
| Supported Band | NS | ||
| 4G | Availability | S | |
| Supported Band | Band 1/3/19/28 | ||
| Category | Cat.1 | ||
| DL CA | NS | ||
| UL CA | NS | ||
| 3G | Availability | S | |
| Supported Band | Band I | ||
| DL Category | Cat.8 | ||
| UL Category | Cat.6 | ||
| Function | CS Voice | NS | |
| VoLTE | NS | ||
| Data | S | ||
| SMS | S | ||
| eDRX | NS | ||
| PSM | NS | ||
| GPS | Standalone | NS | |
| Assisted （Control Plane） |
NS | ||
| Module information | Interface | USB 2.0 x 1 / Serial x 2 | |
| Operation Temperature | -40°C 〜 +85°C | ||
| Form Factor | LGA | ||
| Dimension ※L×W×H(mm) | 29mm × 33mm × 3mm | ||
| Weight（g） | 5g | ||
Update date:2023/02
