LM960A18

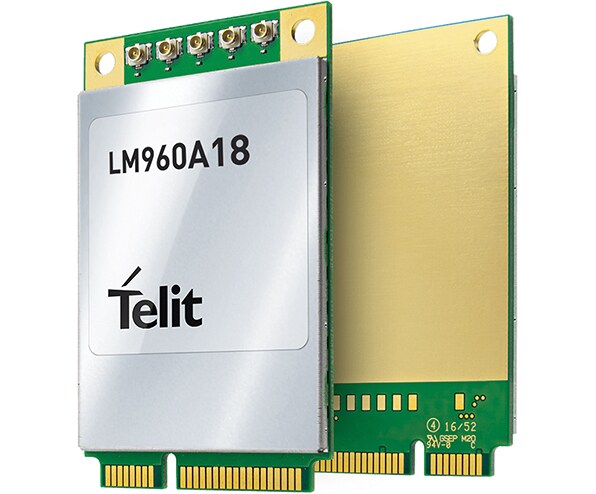

LM960A18 Telit Wireless Solutions
- LM960A18 is an LTE Cat 18 module supporting global LTE bands and 3G fallback. It supports 4x4 MIMO, 5x downlink carrier aggregation and 2x uplink carrier aggregation. It includes GNSS receiver. Standard Mini PCIe Data-card form factor.
| IOT完了年月 | 2020年7月 |
|---|
| Radio Access technology | 4G/3G | ||
|---|---|---|---|
| Chipset vendor / model | Qualcomm/SDX20 | ||
| Module FW version | 32.00.119 | ||
| IOT completed information | 5G | Availability | NS |
| Supported Band | NS | ||
| 4G | Availability | S | |
| Supported Band | Band 1/3/19/28/42 | ||
| Category | Cat.12 | ||
| DL CA | 5CC | ||
| UL CA | 2CC | ||
| 3G | Availability | S | |
| Supported Band | Band I/VI/XIX | ||
| DL Category | Cat.24 | ||
| UL Category | Cat.6 | ||
| Function | CS Voice | NS | |
| VoLTE | NS | ||
| Data | S | ||
| SMS | S | ||
| eDRX | NS | ||
| PSM | NS | ||
| GPS | Standalone | S | |
| Assisted （Control Plane） |
S | ||
| Module information | Interface | USB 3.0/GPIO | |
| Operation Temperature | -40°C ～ +85°C | ||
| Form Factor | Mini PCI Express | ||
| Dimension ※L×W×H(mm) | 50.95mm × 30.0mm × 2.8mm | ||
| Weight（g） | 10.1g | ||
Update date:2023/03
