LE910C1-AP mPCIe

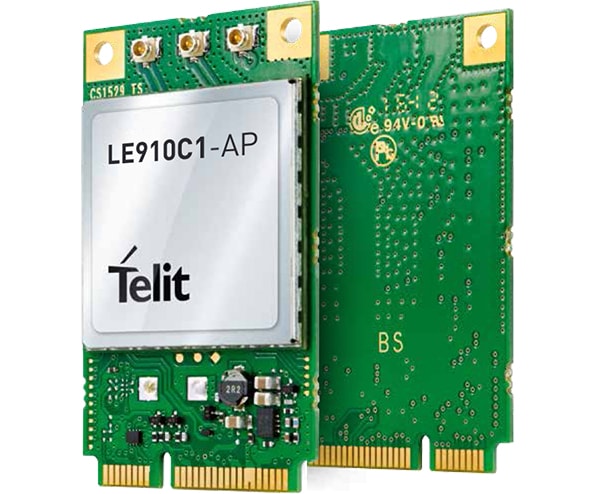

LE910C1-AP mPCIe Telit Wireless Solutions
- LE910C1-AP mPCIe is an LTE Cat 1 module supporting multiple LTE bands and 3G fallback. It includes GNSS receiver. Version on miniPCIe adapter board.
| IOT完了年月 | 2019年7月 |
|---|
| Radio Access technology | 4G/3G | ||
|---|---|---|---|
| Chipset vendor / model | Qualcomm/MDM9207 | ||
| Module FW version | M0F.280010 | ||
| IOT completed information | 5G | Availability | NS |
| Supported Band | NS | ||
| 4G | Availability | S | |
| Supported Band | Band 1/3/19/28 | ||
| Category | Cat.1 | ||
| DL CA | NS | ||
| UL CA | NS | ||
| 3G | Availability | S | |
| Supported Band | Band I/VI/XIX | ||
| DL Category | Cat.24 | ||
| UL Category | Cat.6 | ||
| Function | CS Voice | S | |
| VoLTE | S | ||
| Data | S | ||
| SMS | S | ||
| eDRX | S | ||
| PSM | NS | ||
| GPS | Standalone | S | |
| Assisted （Control Plane） |
NS | ||
| Module information | Interface | USB 2.0 / Serial | |
| Operation Temperature | -40°C ～ +85°C | ||
| Form Factor | Mini PCI Express | ||
| Dimension ※L×W×H(mm) | 50.95mm × 30.0mm × 3.2mm | ||
| Weight（g） | 7.0g | ||
Update date:2021/6
