LBAD0XX1WG

LBAD0XX1WG (株)村田製作所

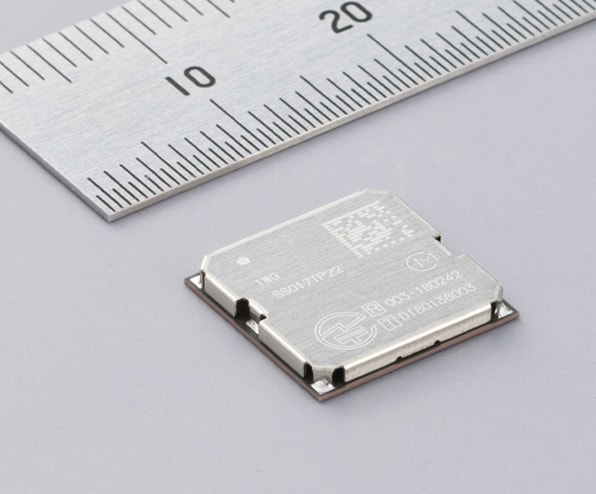

- 世界最小サイズのLTE-M(Cat M1) 超小型モジュール
- Altair社 ALT1250を実装。PSM/eDRXに対応した省電力仕様
- 評価ボードと共に豊富な開発用ドキュメント類を用意
- 技適取得済の豊富なアンテナリストを用意
- docomo IOT取得済。IoTデバイス回線管理Platformに対応予定('20/7)
IOT完了年月 | 2020年6月 |
---|
Radio Access technology | LTE-M | ||
---|---|---|---|
Chipset vendor / model | Altair/ALT1250 | ||
Module FW version | RK2.1.1.0.81 | ||
IOT completed information | 5G | Availability | NS |
Supported Band | NS | ||
4G | Availability | S | |
Supported Band | Band 1/19 | ||
Category | Cat.M1 | ||
DL CA | NS | ||
UL CA | NS | ||
3G | Availability | NS | |
Supported Band | NS | ||
DL Category | NS | ||
UL Category | NS | ||
Function | CS Voice | NS | |
VoLTE | NS | ||
Data | S | ||
SMS | S | ||
eDRX | S | ||
PSM | – ※IOTは未実施だが、端末としてはサポート | ||
GPS | Standalone | NS | |
Assisted (Control Plane) |
NS | ||
Module information | Interface | UART,UICC | |
Operation Temperature | -40C ~ +85°C | ||
Form Factor | LGA | ||
Dimension ※L×W×H(mm) | 12.0mm × 12.2mm × 1.6mm | ||
Weight(g) | 0.49g |
Update date:2020/11
