LAM-J300
LAM-J300 LG Innotek
- Frequency bands : LTE B1/B19, WCDMA B1/B6/B19
- Output power : 3.8V
- Operating Temp. : -30°C - + 70°C

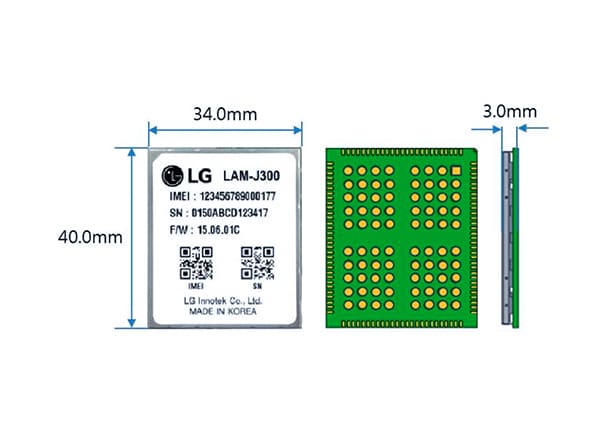

- Dimensions : 34mm x 40mm x 3.0mm
- LTE Cat4 / HSPA Cat 24 supported
| IOT完了年月 | 2018年8月 |
|---|
| Radio Access technology | 4G/3G | ||
|---|---|---|---|
| Chipset vendor / model | Qualcomm/MDM9628 | ||
| Module FW version | 01F_HNNTT | ||
| IOT completed information | 5G | Availability | NS |
| Supported Band | NS | ||
| 4G | Availability | S | |
| Supported Band | Band 1/19 | ||
| Category | Cat.4 | ||
| DL CA | NS | ||
| UL CA | NS | ||
| 3G | Availability | S | |
| Supported Band | Band I/VI/XIX | ||
| DL Category | Cat.24 | ||
| UL Category | Cat.6 | ||
| Function | CS Voice | S | |
| VoLTE | S | ||
| Data | S | ||
| SMS | S | ||
| eDRX | NS | ||
| PSM | NS | ||
| GPS | Standalone | S | |
| Assisted （Control Plane） |
NS | ||
| Module information | Interface | USB2.0 x 1／etc.(UART／GPIOs／I2C／SPI) | |
| Operation Temperature | -30°C 〜 + 70°C | ||
| Form Factor | LGA | ||
| Dimension ※L×W×H(mm) | 34mm × 40mm × 3mm | ||
| Weight（g） | approx. 9g | ||
Update date:2020/6
