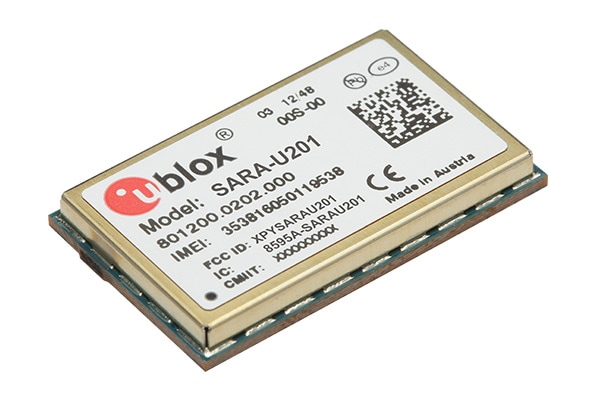

SARA-U201
SARA-U201 u-blox AG
- UMTS/HSPA LGA module 5.76 Mbit/s uplink and 7.2 Mbit/s downlink
- Easy migration between u-blox 2G, 3G and 4G modules
- Support SMS, TCP／IP, UDP／IP, HTTP, FTP, SSL
- eCall／ERA-GLONASS
- Dual stack IPv4／IPv6
| IOT完了年月 | 2017年8月 |
|---|
| Radio Access technology | 3G | ||
|---|---|---|---|
| Chipset vendor / model | INTEL/XMM6255 | ||
| Module FW version | 23.63 | ||
| IOT completed information | 5G | Availability | NS |
| Supported Band | NS | ||
| 4G | Availability | NS | |
| Supported Band | NS | ||
| Category | NS | ||
| DL CA | NS | ||
| UL CA | NS | ||
| 3G | Availability | S | |
| Supported Band | Band I/VI/XIX | ||
| DL Category | Cat.8 | ||
| UL Category | Cat.6 | ||
| Function | CS Voice | S | |
| VoLTE | NS | ||
| Data | S | ||
| SMS | S | ||
| eDRX | NS | ||
| PSM | NS | ||
| GPS | Standalone | NS | |
| Assisted （Control Plane） |
NS | ||
| Module information | Interface | USB 2.0 x 1 ／ UART x 1 ／ SDIO x 1 ／ GPIO x 9 ／ DDC for GNSS ／ I 2 C slave | |
| Operation Temperature | -40°C 〜 +85°C | ||
| Form Factor | M.2 | ||
| Dimension ※L×W×H(mm) | 16.0mm × 26.0mm × 3.0mm | ||
| Weight（g） | <3g | ||
