JP
PLS8-J

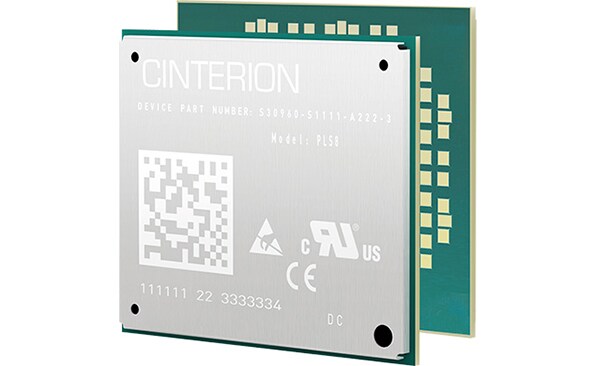

PLS8-J Telit Wireless Solutions
- Footprint Compatibility (LGA-156pad)
- Extended Tempreture range
- Support Embedded SIM
- Embedded GNSS with A-GNSS support
- MS windows/Linux/Android Support
| IOT完了年月 | 2017年4月 |
|---|
| Radio Access technology | 4G/3G | ||
|---|---|---|---|
| Chipset vendor / model | Qualcomm/MDM9215 | ||
| Module FW version | 03.0.44 | ||
| IOT completed information | 5G | Availability | NS |
| Supported Band | NS | ||
| 4G | Availability | S | |
| Supported Band | Band 1/3/19 | ||
| Category | Cat.3 | ||
| DL CA | NS | ||
| UL CA | NS | ||
| 3G | Availability | S | |
| Supported Band | Band I/VI/XIX | ||
| DL Category | Cat.24 | ||
| UL Category | Cat.6 | ||
| Function | CS Voice | S | |
| VoLTE | NS | ||
| Data | S | ||
| SMS | S | ||
| eDRX | NS | ||
| PSM | NS | ||
| GPS | Standalone | S | |
| Assisted （Control Plane） |
S | ||
| Module information | Interface | USB 2.0 x 1 / Serial x 1 | |
| Operation Temperature | -40°C 〜 +85°C | ||
| Form Factor | LGA | ||
| Dimension ※L×W×H(mm) | 29mm × 33mm × 2.3mm | ||
| Weight（g） | 4.5g | ||
Update date:2023/02
