Tokyo 5 Data Center
This self-designed data center is the largest in Tokyo area.
Seismic isolation structured building that could withstand large scale earthquakes
A seismic isolation structured building that minimizes the impact to the building and its facility as well as to the customer’s equipment in an event of large-scale earthquakes.
Building Foundation
Piles are driven 20m below to a foundation that is twice stronger* than the
required ground strength level for high rise buildings.
*A stronger ground with more than N value of 60 with according to its Standard Penetration Test

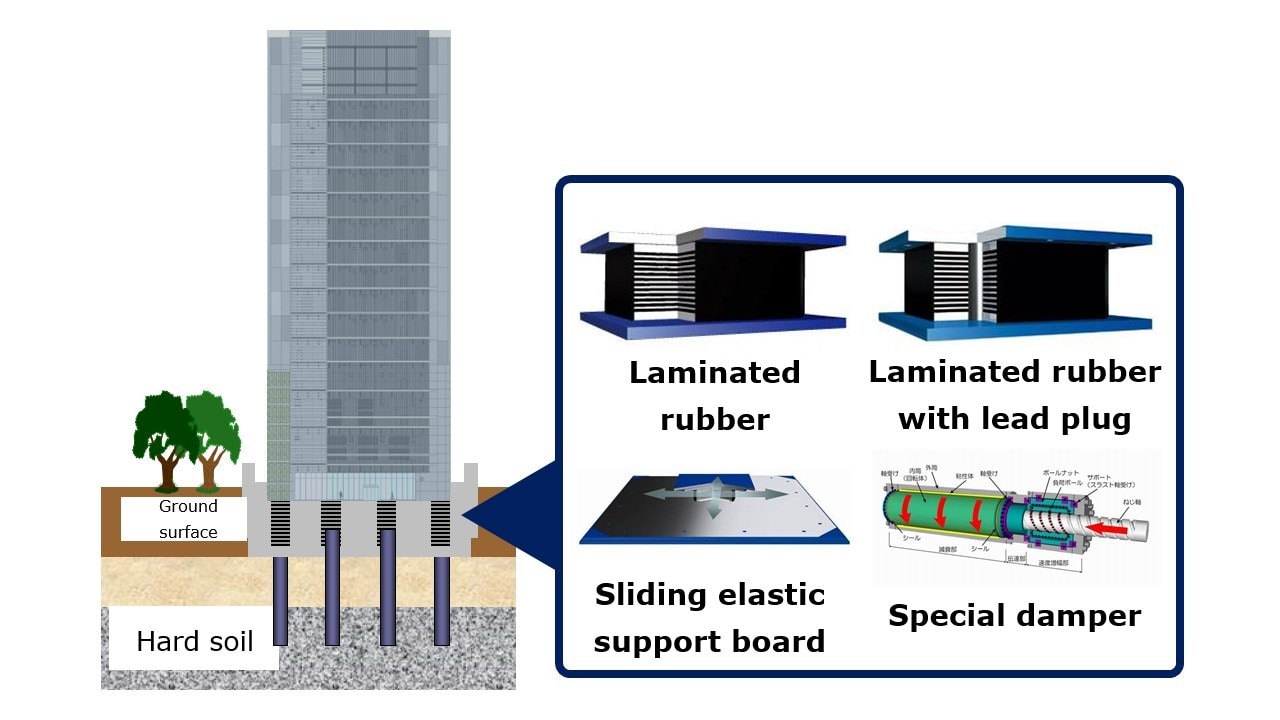

Seismic Isolation Structure
4 types of high-spec seismic isolation devices are equipped in building’s foundation. This reduces up to 1/3* of the impact to prevent equipment to malfunction
Convenient location
・ 10-minute drive from Tokyo station, and accessible by foot from several train stations.
・ 30-minute drive from Haneda international Airport
・ 60-minute drive from Narita International Airport
・ 2-minute walk from the nearest train station
・ 10-minute train ride from Otemachi station
General Specifications
| Building | Location | Bunkyo-ku, Tokyo |
|---|---|---|
| No. of stories | 16 stories 2 penthouse floors |
|
| Structure | Seismic isolation | |
| Floor | Floor load | 1,000kg/㎡ |
| Floor specification | Raised floor Height 600mm |
|
| Power | Receiving | Main/Reserve line |
| Receiving voltage | 66,000V | |
| Emergency generator | Gas turbine engine | |
| Driving time without refueling | More than 24 hours | |
| UPS | N＋１configuration | |
| Battery time | 10 minutes |
| Cooling system | Air cooling Air cooling package |
|---|---|
| Fire protection | Nitrogen gas extinguisher High sensitivity smoke detectors |
| Security | IC Card Biometrics Security gate Cctv monitoring |
