Data Center

Virginia Ashburn 1 Data Center Virtual Tour

Virginia Ashburn 1 Data Center SITE ENTRANCE

What is a Virtual tour?

It is content to use plenty of photos of the major facilities and equipment, have you know more about US Virginia Ashburn 1 Data Center.



Virginia Ashburn 1 Data Center SITE ENTRANCE
Virginia Ashburn 1 Data Center ENTRANCE LOBBY
Virginia Ashburn 1 Data Center MANTRAP
Virginia Ashburn 1 Data Center CUSTOMER LOUNGE
Virginia Ashburn 1 Data Center LOADING BAY
Virginia Ashburn 1 Data Center SHOWCASE CONFERENCE ROOM
Virginia Ashburn 1 Data Center ENTRANCE OF DATA CENTER FLOOR
Virginia Ashburn 1 Data Center SERVER ROOM
Virginia Ashburn 1 Data Center MDF ROOM
Virginia Ashburn 1 Data Center ELECTRICAL ROOM
Virginia Ashburn 1 Data Center BATTERY ROOM
Virginia Ashburn 1 Data Center OUTSIDE OF THE BUILDING
Virginia Ashburn 1 Data Center AIR-COOLING UNITS
Virginia Ashburn 1 Data Center WATER-CHILLER UNITS

SITE ENTRANCE

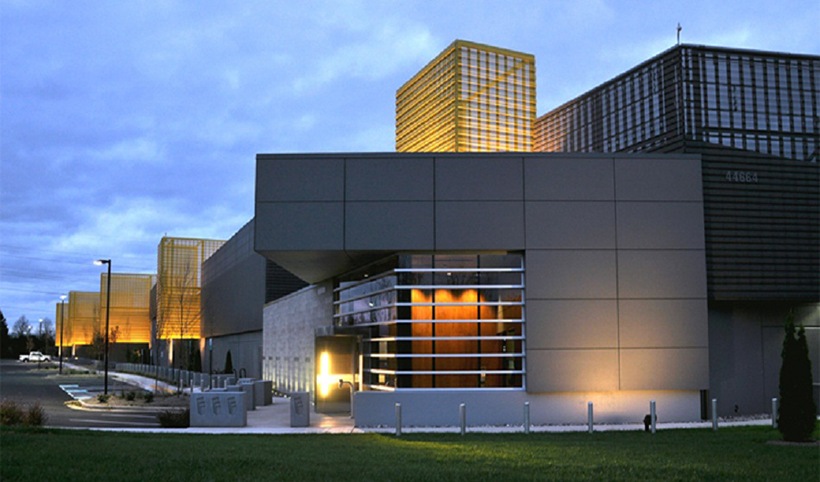

Virginia Ashburn 1 Data Center SITE ENTRANCE

Virginia Ashburn 1 (VA1) Data Center facility is located in the heart of Northern Virginia's Data Center Alley in Ashburn that processes 70% of the world's Internet traffic and has superior fiber connectivity options and also has some of the lowest energy rates on the East Coast.
It is only 10 minute drive from the Washington Dulles International Airport (IAD), and 45 minutes drive to Washington DC.

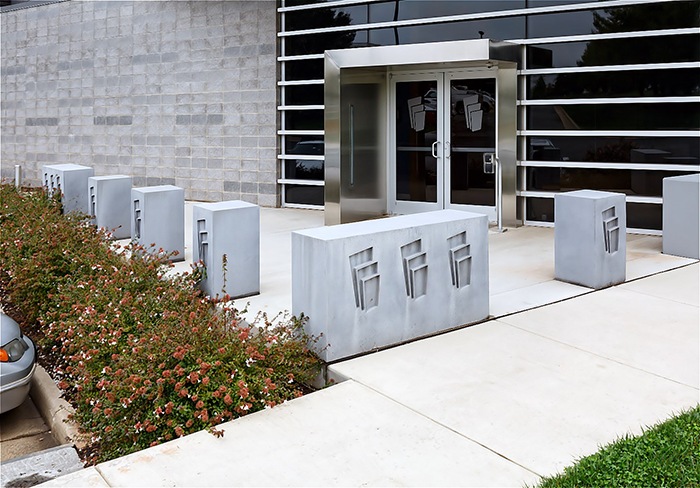

Virginia Ashburn 1 Data Center BOLLARDS

BOLLARDS

The data center is surrounded by concrete and steel bollards. There is a 8-foot curved steel fencing surrounds MEP and loading dock area for an added layer of physical security.

ENTRANCE LOBBY

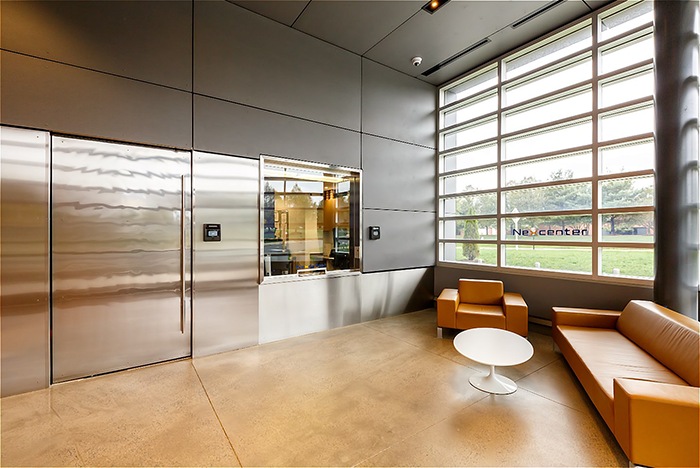

Virginia Ashburn 1 Data Center ENTRANCE LOBBY

Visitors to the data center use a security card or a two-way intercom to enter the facility. At the front desk, 24/7 security staff will confirm your identity with information on the security management system and your government issued photo ID card.

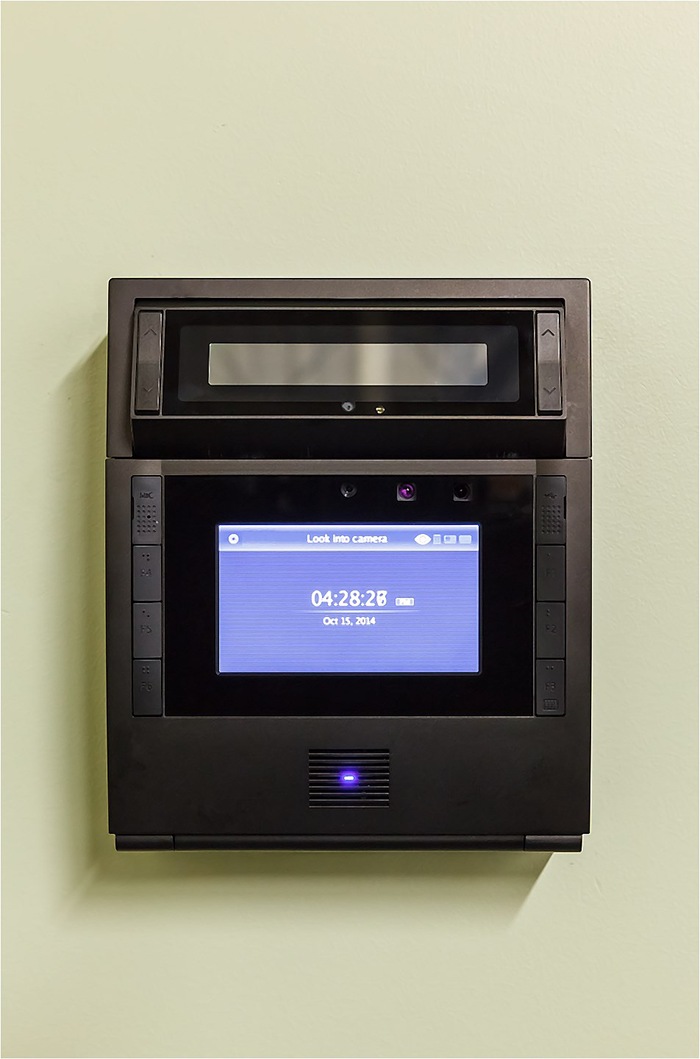

Virginia Ashburn 1 Data Center IRIS SCANNER

IRIS SCANNER

Iris scanner is set at the large door for biometric authentication to get into the mantrap.

All customers are required to register their iris information at the front desk.

MANTRAP

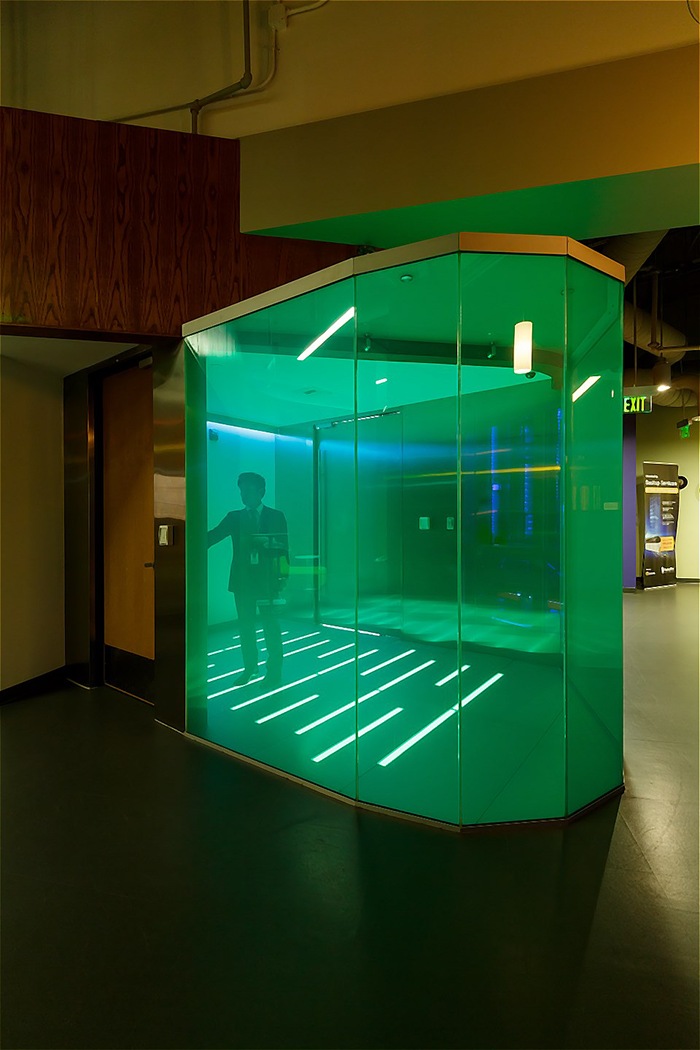

Virginia Ashburn 1 Data Center MANTRAP

All visitors need to pass through the mantrap to get into the office building.
There are four mantraps throughout the building.

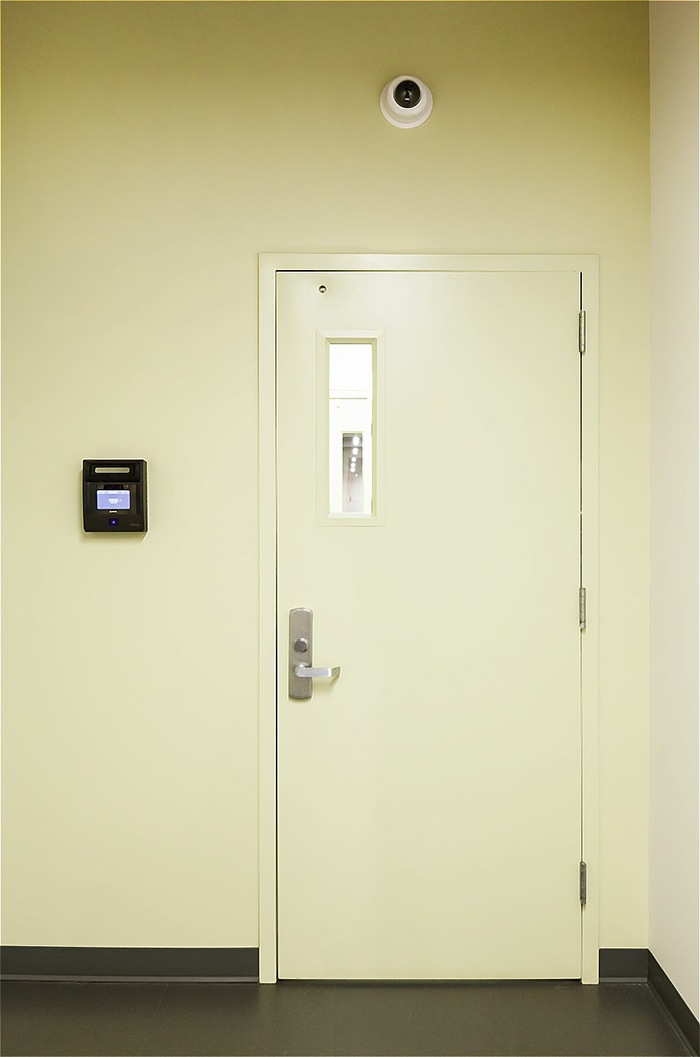

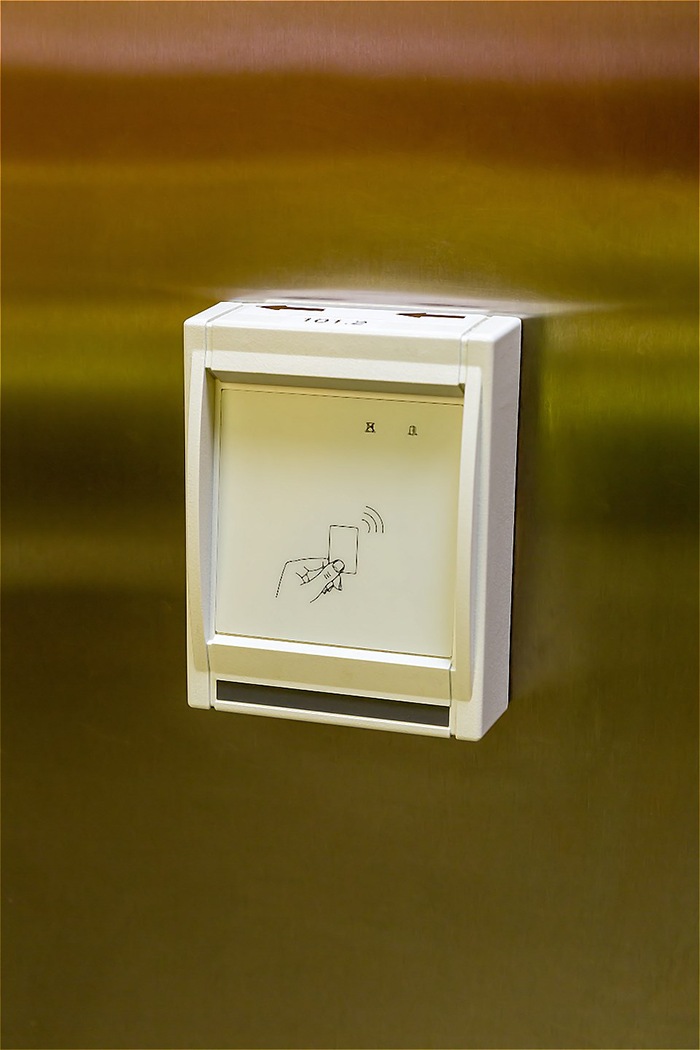

Virginia Ashburn 1 Data Center PROXIMITY CARD READER

PROXIMITY CARD READER

To get out of the mantrap and get into the office building, proximity card authentication is required.

CUSTOMER LOUNGE

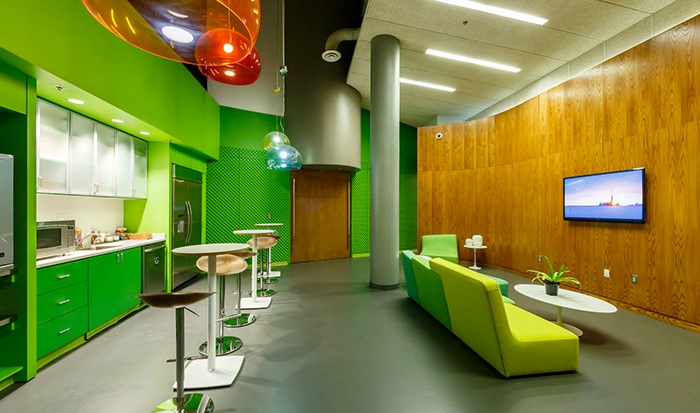

Virginia Ashburn 1 Data Center CUSTOMER LOUNGE

Customer-dedicated lounge with a variety of amenities are provided for customer's comfortable stay.

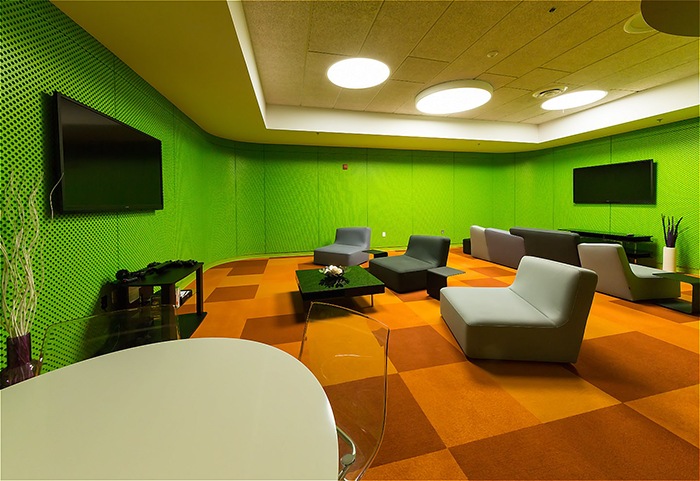

Virginia Ashburn 1 Data Center GAME ROOM

GAME ROOM

Flat screen TVs and gaming consoles are placed in the customer-dedicated game room.

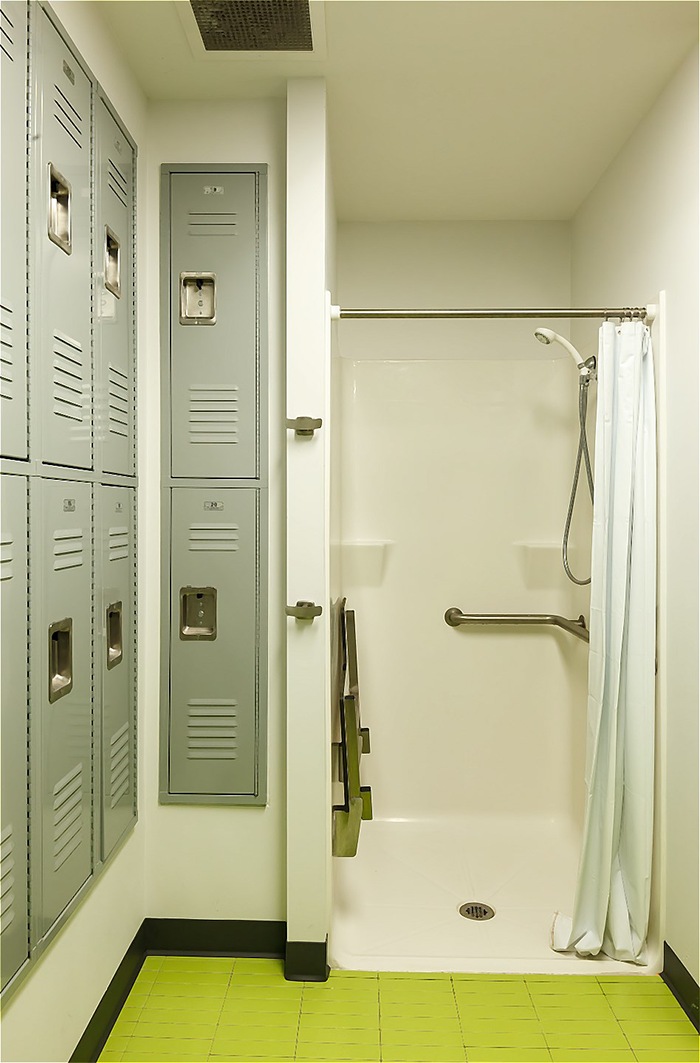

Virginia Ashburn 1 Data Center LOCKER ROOM/SHOWER ROOM

LOCKER ROOM/SHOWER ROOM

Customer-dedicated locker rooms and shower rooms are also provided.

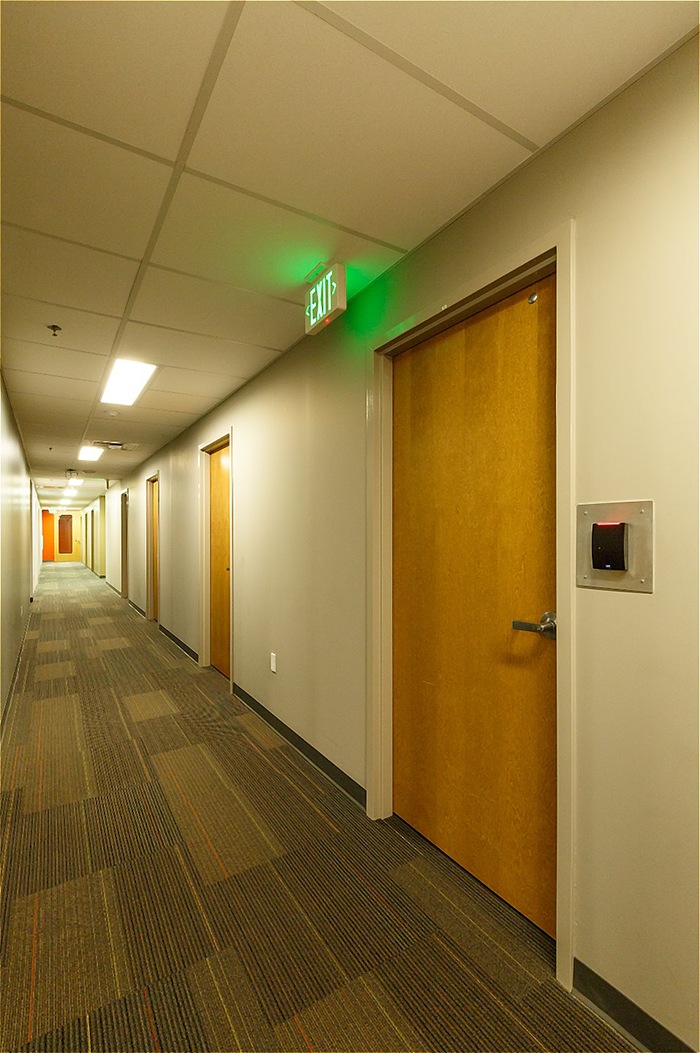

Virginia Ashburn 1 Data Center CUSTOMER OFFICE SPACE

CUSTOMER OFFICE SPACE

Dedicated, fully equipped office space of various sizes is also available as part of our colocation solutions. These offices are private, secure and require a proximity card and pin code authentication for access.

LOADING BAY

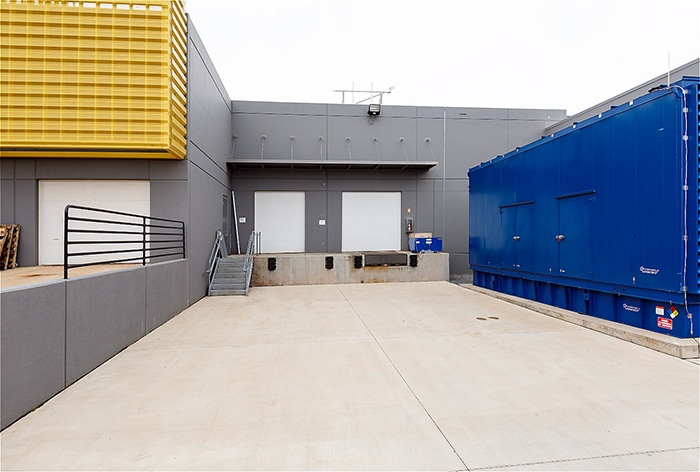

Virginia Ashburn 1 Data Center LOADING BAY

Deliveries are accepted 24/7 at the shipping and receiving area.
Security specialists are physically present for all deliveries for your secure shipping and receiving.

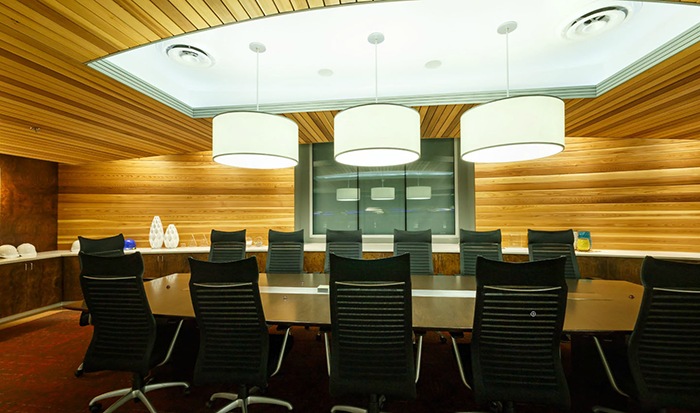

SHOWCASE CONFERENCE ROOM

Virginia Ashburn 1 Data Center SHOWCASE CONFERENCE ROOM

This conference room is also available for our customers to book and use for their meetings. Access to upstairs is limited.

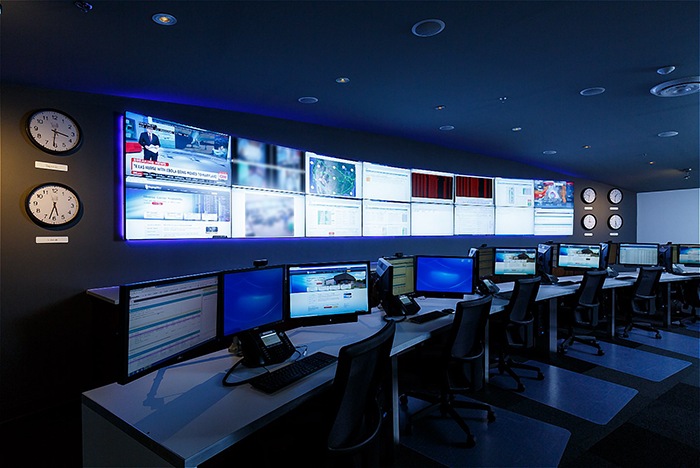

Virginia Ashburn 1 Data Center NETWORK OPERATIONS CENTER (NOC)

NETWORK OPERATIONS CENTER (NOC)

Our NOC provides on-site and on-call support staff 24/7 for customer support and is fully integrated with RagingWire's other NOCs.

ENTRANCE OF DATA CENTER FLOOR

Virginia Ashburn 1 Data Center ENTRANCE OF DATA CENTER FLOOR

There are five server rooms in the data center totaling 70,000 ft of raised floor space. Nine levels of security are required from the entrance of the building in order to enter the data center floor.

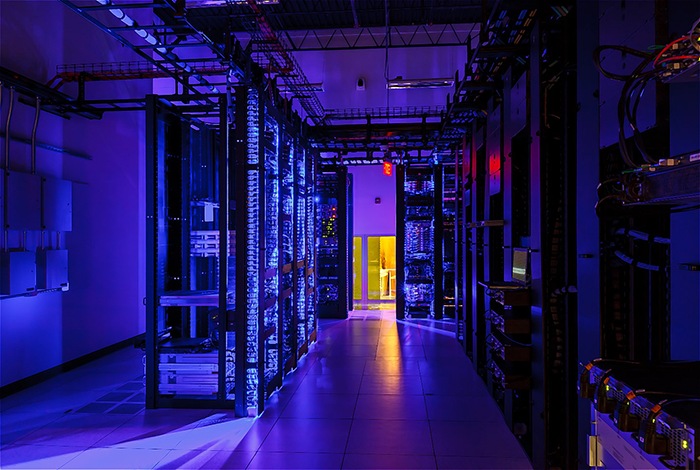

SERVER ROOM

Virginia Ashburn 1 Data Center SERVER ROOM

Various customization is available for customers in our sever rooms.
It has a 3 ft raised floor with 1,500kg/m2 loading capacity and is able to accommodate high-density racks.

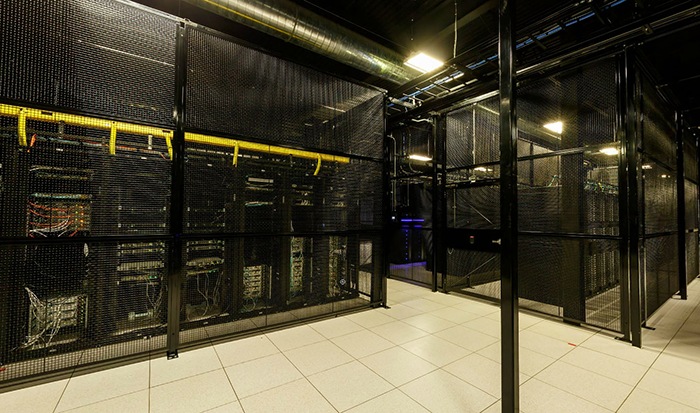

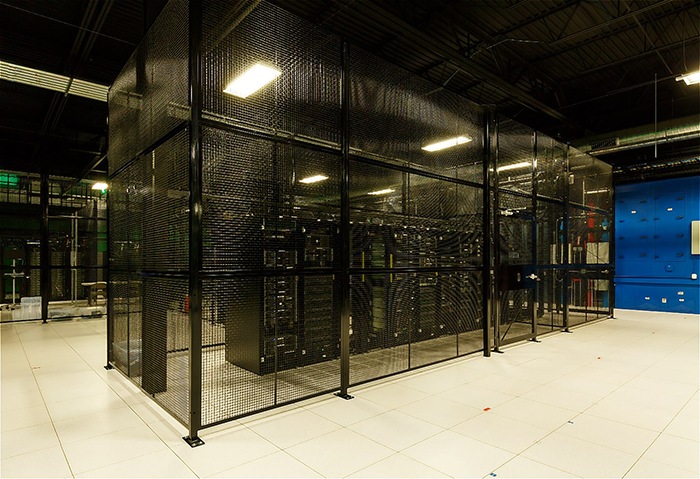

Virginia Ashburn 1 Data Center CAGE

CAGE

Dedicated cages are available. We provide customized environments with integrated security, capable of supporting racks up to 62U in height including cabling and fit-up services.

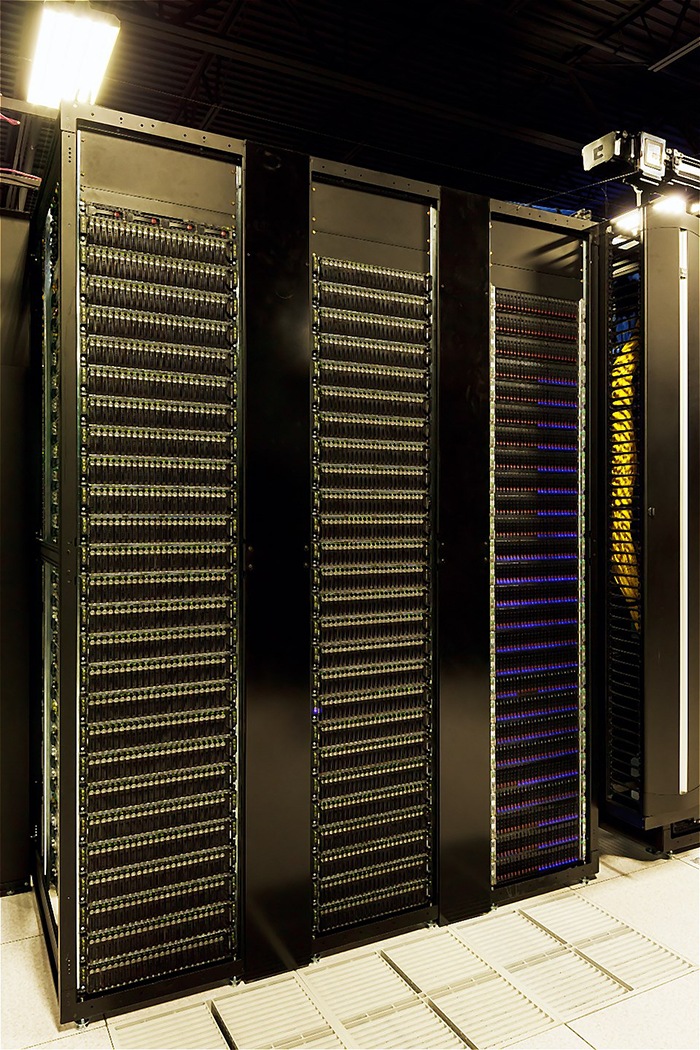

Virginia Ashburn 1 Data Center RACK

RACK

We can accommodate various sizes of racks responding to customer's needs.

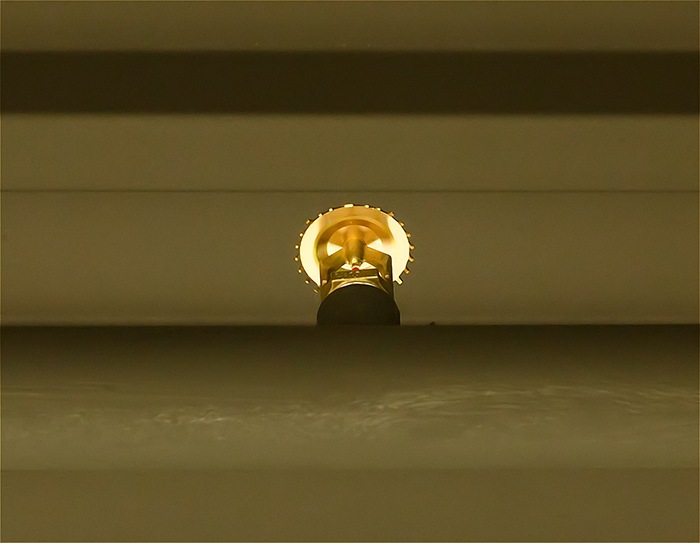

Virginia Ashburn 1 Data Center FIRE SUPPRESSION SYSTEM

FIRE SUPPRESSION SYSTEM

The entire data center raised floor space is protected from fire by pre-action, dual-interlock, dry-pipe fire suppression system with photo-electric early warning smoke detectors for an efficient and worry free data center environment.

MDF ROOM

Virginia Ashburn 1 Data Center MDF ROOM

The highly secured Main Distribution Facility (MDF) contains data center infrastructure management systems and telecommunications. Virginia Ashburn 1 (VA1) Data Center is a carrier neutral data center with access to hundreds of telecommunications providers via multiple fiber entrances.

ELECTRICAL ROOM

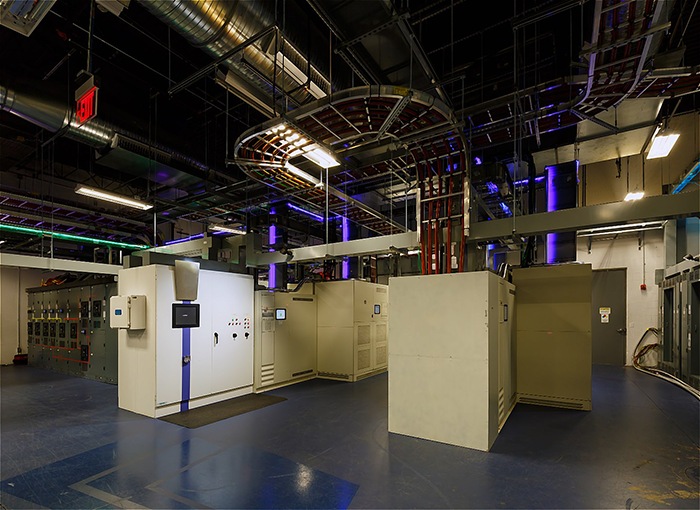

Virginia Ashburn 1 Data Center ELECTRICAL ROOM

Our data center delivers 14.4 MW of critical IT load. Utility power is distributed throughout the facility through three electrical rooms with a total of nine 1,800 kW UPS systems and nine Main Switch Boards (MSB) that create nine isolated power paths. These systems are all backed up by RagingWire's patented 2N+2 infrastructure.

Virginia Ashburn 1 Data Center ELECTRICAL ROOM

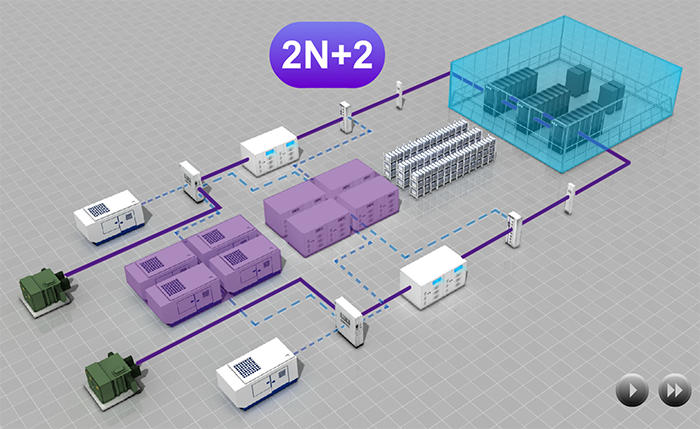

Two completely independent electrical distribution paths (2N), with an additional N+2 redundancy on critical components like UPS and generators - all protecting customer IT equipment.
The data center design delivers 100% availability with 2N+2 architecture and an operational model which exceeds the Tier IV standards.

BATTERY ROOM

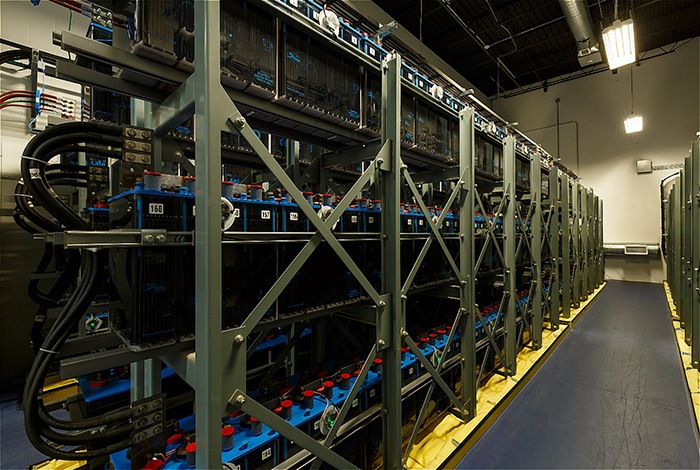

Virginia Ashburn 1 Data Center BATTERY ROOM

Batteries are an important link in our 100% availability of power supply.
Redundant battery rooms contain flooded lead-acid battery strings with the latest technology and an innovative monitoring system so the batteries are always ready.

OUTSIDE OF THE BUILDING

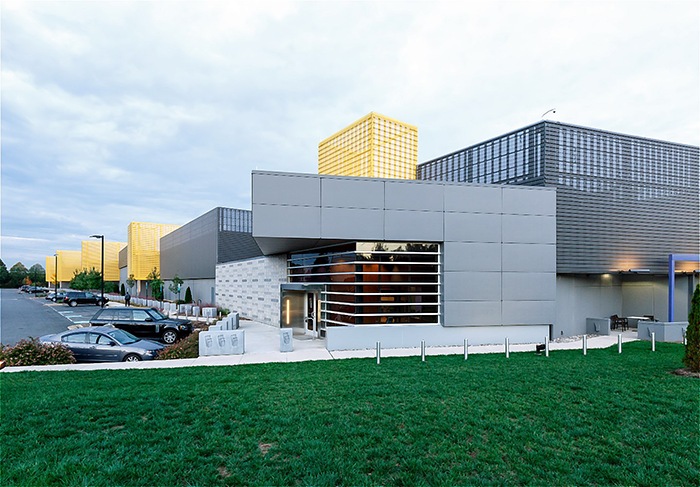

Virginia Ashburn 1 Data Center OUTSIDE OF THE BUILDING

Outside the building, generators and cooling systems are placed and are surrounded by a 8-foot curved steel fence with hardened security guard post.

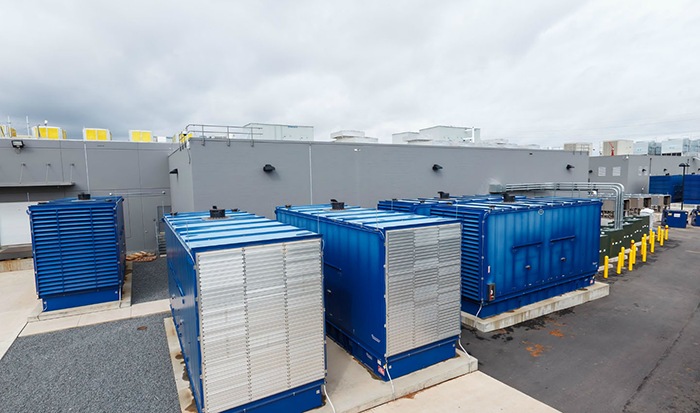

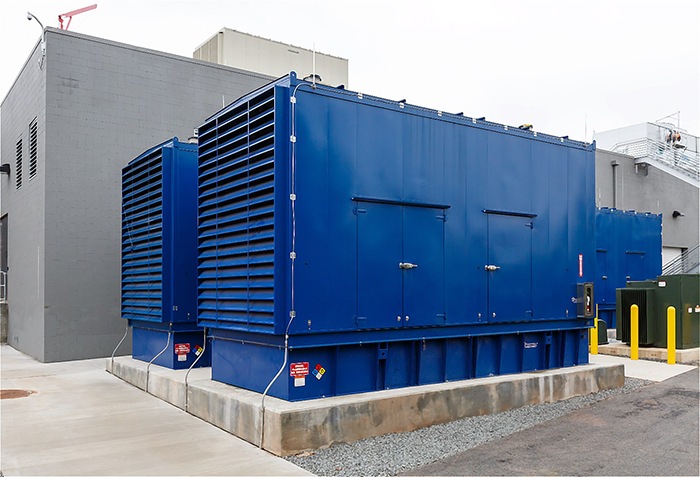

Virginia Ashburn 1 Data Center GENERATORS

GENERATORS

The facility maintains 14 two MW diesel generators for a total backup capacity of 28 MW of power.

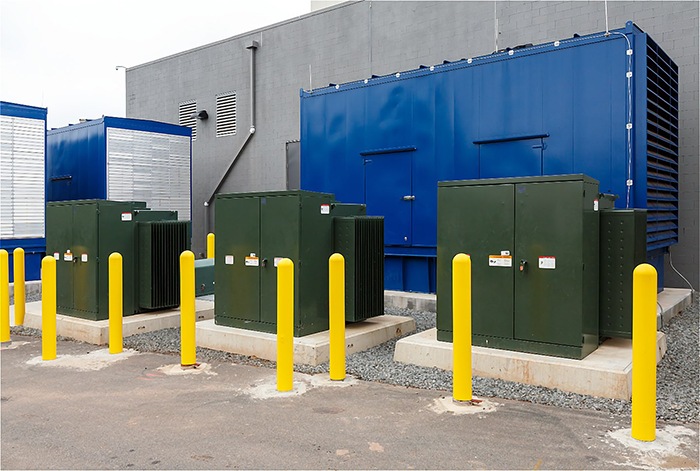

Virginia Ashburn 1 Data Center TRANSFORMERS

TRANSFORMERS

RagingWire owns and manages nine step-down transformers that receive a highly protected, concrete encased utility power feed and convert it as part of RagingWire's patented 2N+2 power delivery system.

AIR-COOLING UNITS

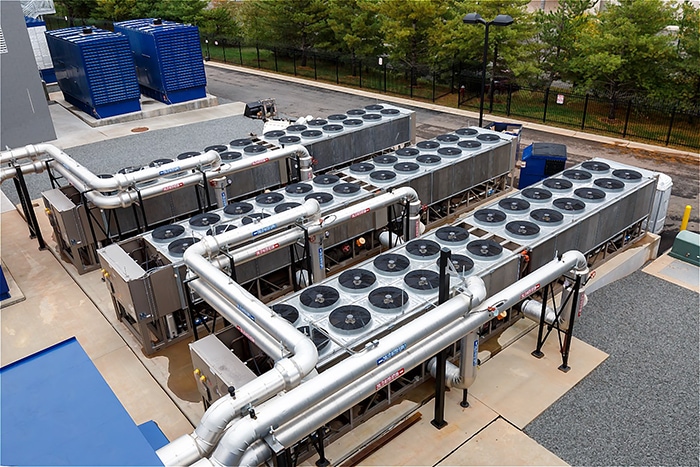

Virginia Ashburn 1 Data Center AIR-COOLING UNITS

The data center facility has two highly efficient and powerful cooling systems. The air-cooling system atcts as a backup to the primary water-cooling system. Each air-cooling chiller is equipped with economization functions. On the data center floor, custom-built 100-ton computer room air handlers (CRAHs) are used to cool high-density compute racks. These CRAHs can automatically bypass the chiller plant and use outside air when conditions are appropriate.

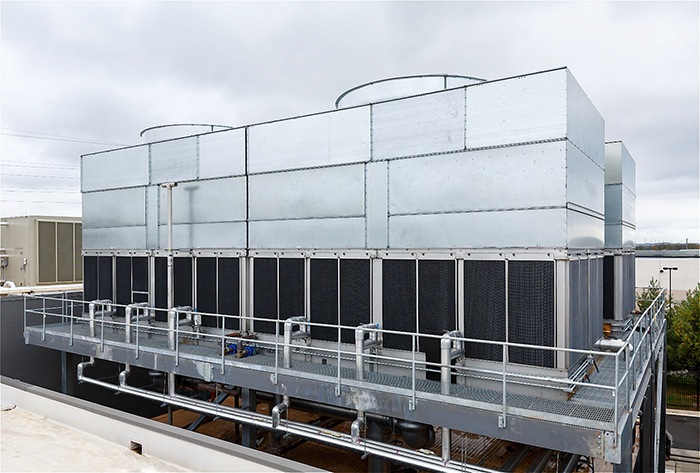

WATER-CHILLER UNITS

Virginia Ashburn 1 Data Center WATER-CHILLER UNITS

The primary cooling plant is a chilled water system that deploys an innovative design with three sources of water for maximum reliability abd cost-efficiency. The primary water source is an on-site well. The secondary source is a unique reclaimed water line (also known as "gray water") developed with the local water utility. The third source of water is standard potable water from the utility. This water-cooling plant is also equipped with economization functions for greater efficiency.
