Data Center

UK Slough 2 Data Center Virtual Tour

UK Slough 2 Data Center BUILDING OVERVIEW
slough2_gaikan_100x100
UK Slough 2 Data Center SECURITY FENCE
UK Slough 2 Data Center CORRIDOR
UK Slough 2 Data Center SERVER ROOM
UK Slough 2 Data Center GENERATORS
UK Slough 2 Data Center POWER PLANT ROOM
UK Slough 2 Data Center FIRE EXTINGUISHING SYSTEM
UK Slough 2 Data Center AIR-CONDITIONING SYSTEM
UK Slough 2 Data Center OTHER FACILITIES

BUILDING OVERVIEW

UK Slough 2 Data Center BUILDING OVERVIEW

Due to its highly redundant design, Slough 2 Data Center can cater for a huge range of workloads and customer requirements across the business sectors ensuring maximum uptime for your business. Whether it’s, retail colocation, cloud or managed services requirement, Slough 2 Data Center has the scope and ability to provide the perfect environment for your business need.

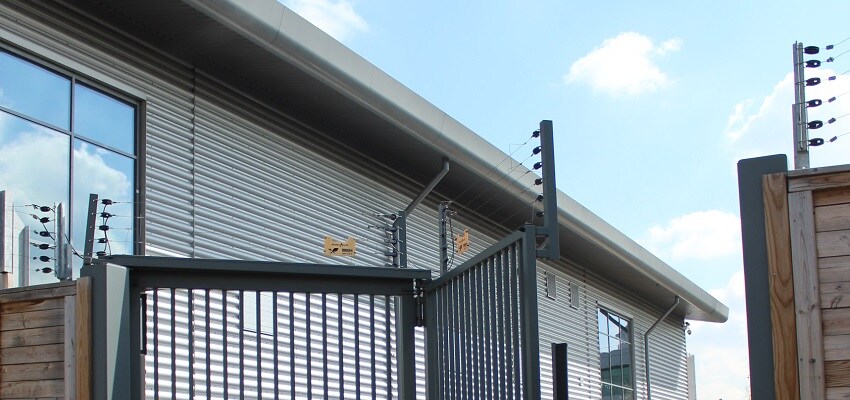

SECURITY FENCE

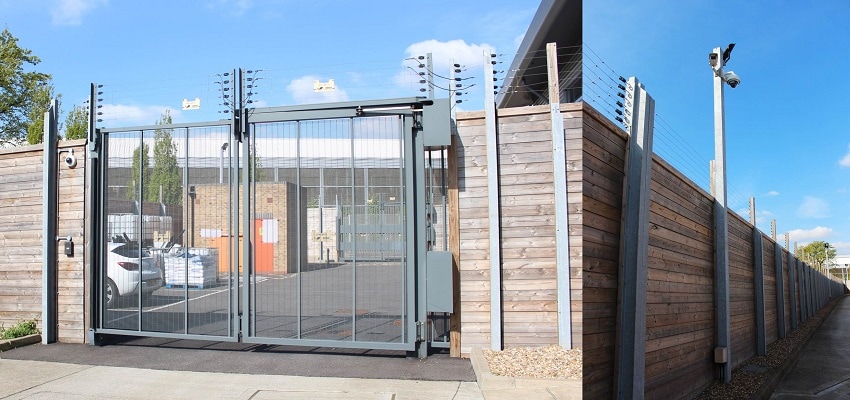

UK Slough 2 Data Center SECURITY FENCE

3.6 m-high perimeter fence encapsulates all of the data center secure sections.

Customers need to pass through two security gates with anti-passback when customers enter Slough 2 Data Center's premises by vehicle to carry in their equipment.

CORRIDOR

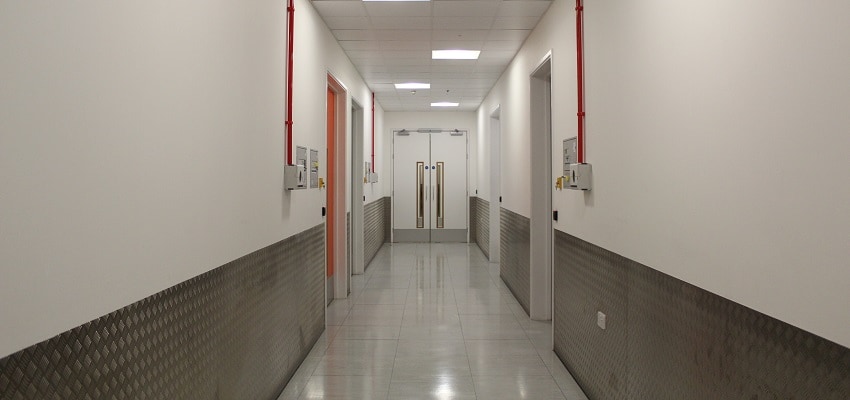

UK Slough 2 Data Center CORRIDOR

Metal checker plating is applied to lower part of the data center wall to prevent damage during carry-in/out work.
Customers do not need to implement care protection each time.

SERVER ROOM

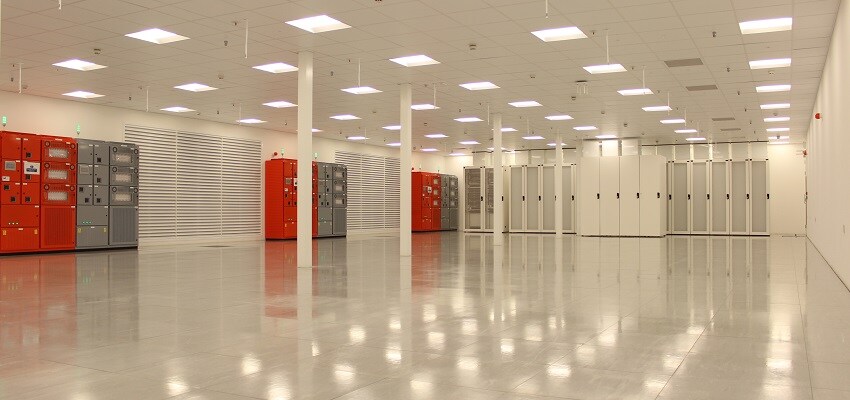

UK Slough 2 Data Center SERVER ROOM

Our server room is populated with 52U racks.
Server rooms in Slough 2 Data Center only have "Cold aisle area".
Chimney racks make the air flow system possible.
Hot air from the rack returns to Air Handling Unit directly through chimney on top of the rack.
This cooling methodology enables high-power provision to rack. (16kW per rack)

GENERATORS

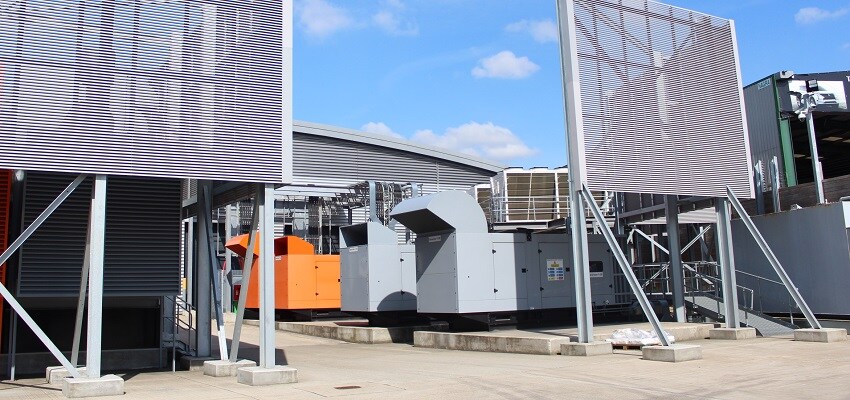

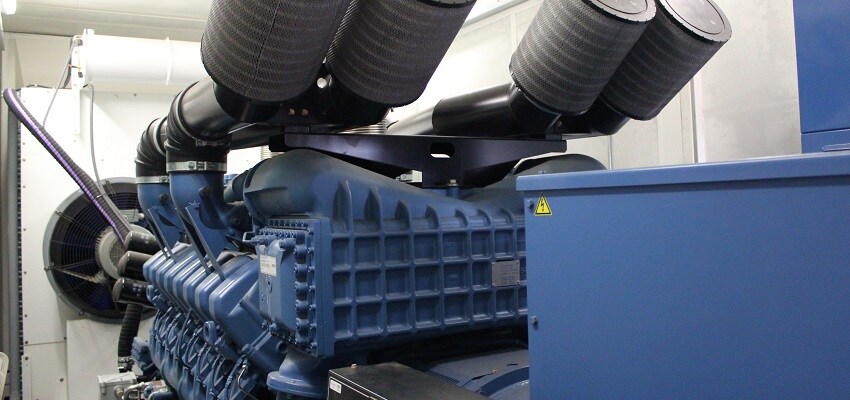

UK Slough 2 Data Center GENERATORS

The generator system is 2N redundant.
Generators have enough fuel to run at full load for 72 hours.

UK Slough 2 Data Center GENERATORS



POWER PLANT ROOM

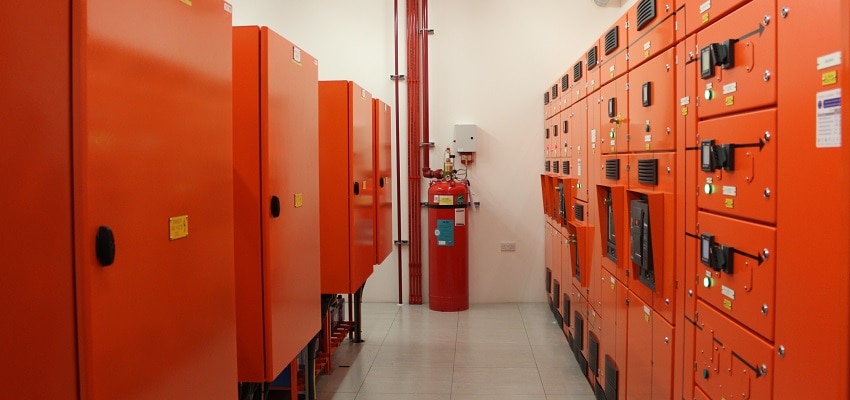

UK Slough 2 Data Center POWER PLANT ROOM

Power is provided via resilient feeds to the plant room. Each feed will be capable of supporting the load of the DC via 2N distribution.

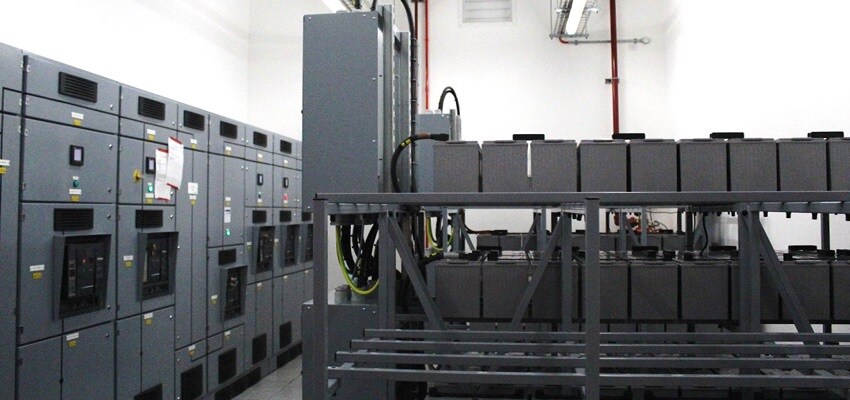

UK Slough 2 Data Center POWER PLANT ROOM BATTERIES

BATTERIES

In the case of power failure there are diverse battery rooms to provide power via the UPS until the generators are online. Battery rooms are kept at a constant temperature (normally around 22˚C dependent on DC). Typically these rooms will have dedicated fire detection and suppressant.

FIRE EXTINGUISHING SYSTEM

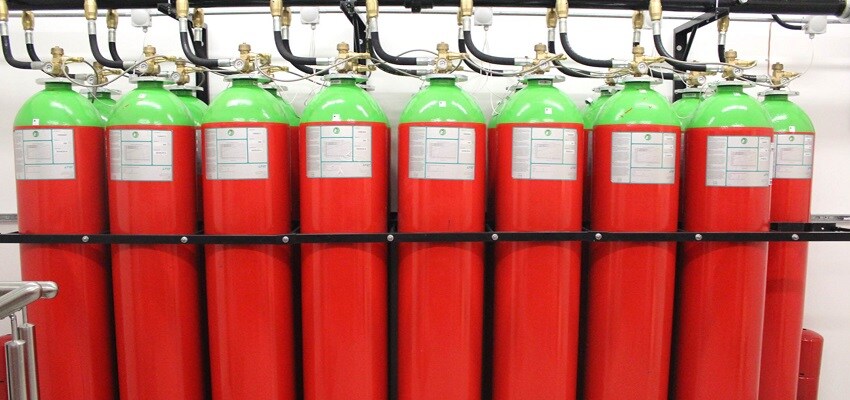

UK Slough 2 Data Center FIRE EXTINGUISHING SYSTEM

Each standard server room has IG55 gas fire suppression system and Very Early Smoke Detection Apparatus that detect fire at an early stage.

AIR-CONDITIONING SYSTEM

UK Slough 2 Data Center UK Slough 2 Data Center FIRE EXTINGUISHING SYSTEM

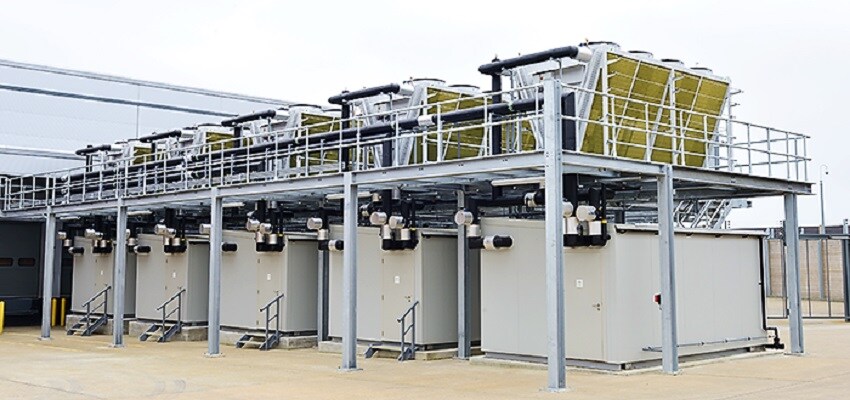

The external cooling units are in a N+1 configuration and are used to recirculate and cool down heat from the air Handling Units.

OTHER FACILITIES

UK Slough 2 Data Center MEETING ROOM

MEETING ROOM

UK Slough 2 Data Center BREAK OUT AREA

BREAK OUT AREA
