SITE ENTRANCE

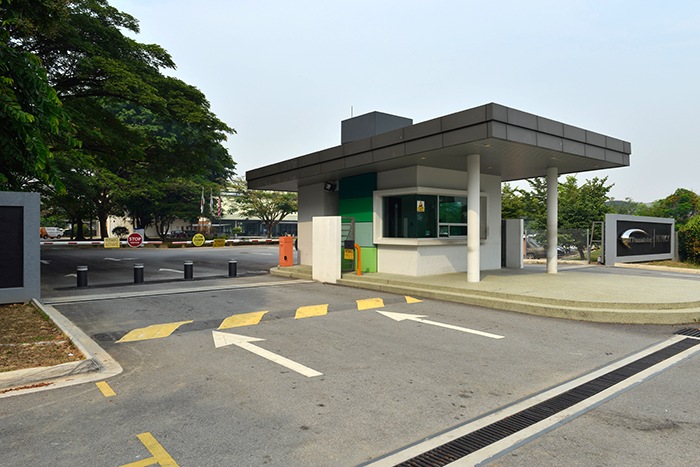

Malaysia Cyberjaya 4 Data Center SITE ENTRANCE

Malaysia Cyberjaya 4 Data Center is located in Cyberjaya, where natural disaster are extremely low and stable public infrastructures are provided. In addition, with its features of lower electricity cost and labor cost than other Asian countries, Malaysia is becoming popular as a ICT system hub, offshore center, and backup site for disaster recovery among the APAC area.

Malaysia Cyberjaya 4 Data Center BOLLARD

BOLLARD

There is a bollard gate at the entrance of site to ensure the high-level security.

ENTRANCE LOBBY

Malaysia Cyberjaya 4 Data Center ENTRANCE LOBBY

Visitors are required to register at the security counter. Security officer will provide a proximity card for the visitor and check whether the visitor has any luggage that cannot be carried in to the data center.

SECURITY GATE

Malaysia Cyberjaya 4 Data Center SECURITY GATE

Proximity card authentication is installed at the security gate.

LOADING BAY

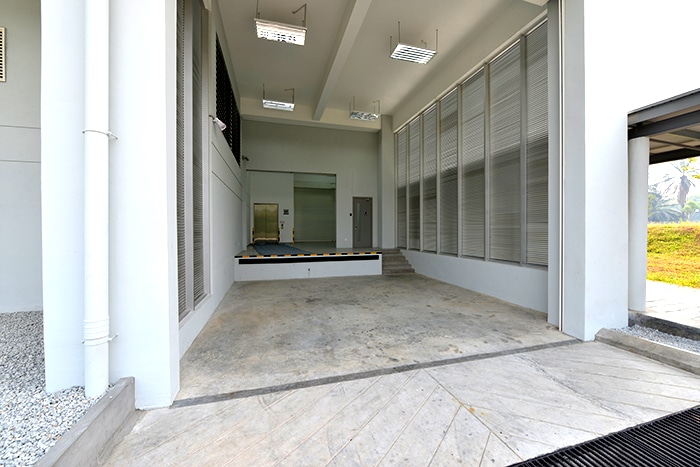

Malaysia Cyberjaya 4 Data Center LOADING BAY

The loading bay consists of a one meter height platform for two trucks for loading/unloading of heavy equipment. The roller shutter is integrated with interlocking control design to prevent unauthorized access.

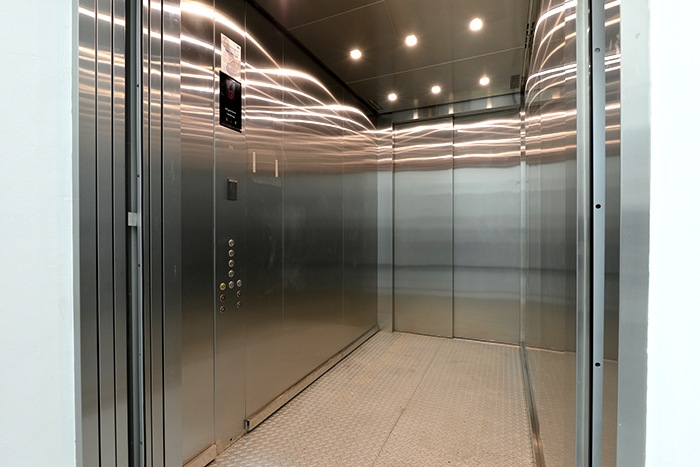

FREIGHT ELEVATOR

Malaysia Cyberjaya 4 Data Center FREIGHT ELEVATOR

This elevator is designed to serve both cargo and passenger and is able to carry a load of 1,910 kg at most. CCTV and proximity card access control are installed to ensure security.

ENTRANCE OF SERVER ROOM

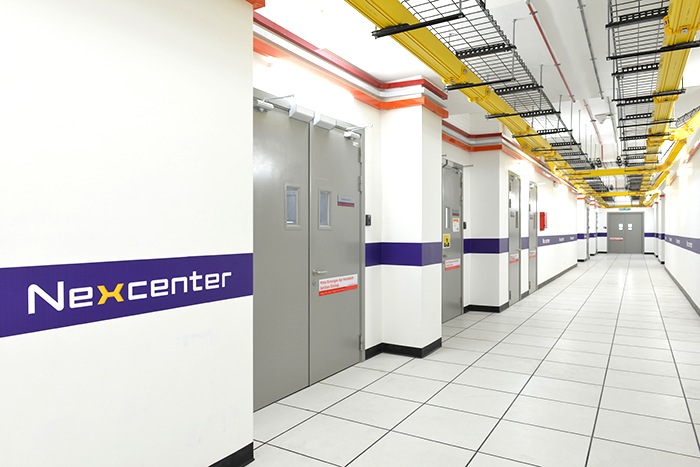

Malaysia Cyberjaya 4 Data Center ENTRANCE OF SERVER ROOM

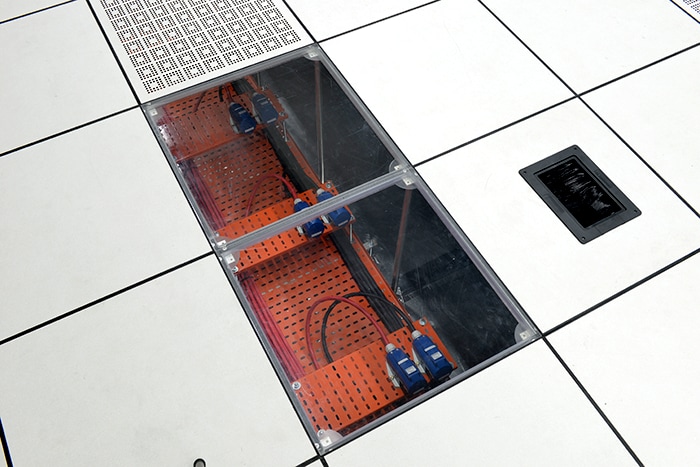

Cable trays are installed to the ceiling and are color-coded according to the type of cable.

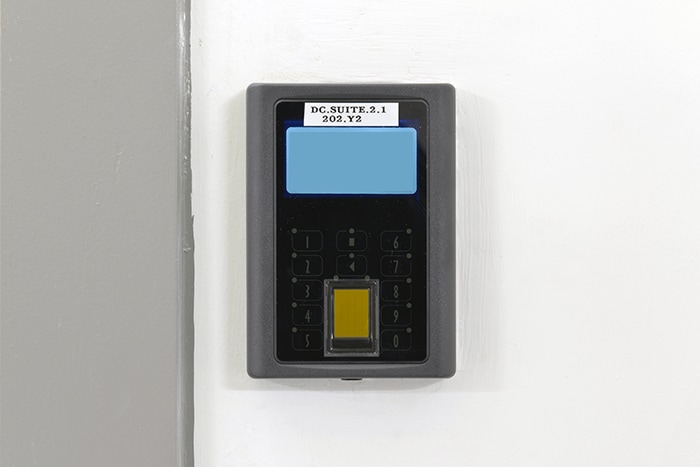

Malaysia Cyberjaya 4 Data Center FINGERPRINT AUTHENTICATION DEVICE

FINGERPRINT AUTHENTICATION DEVICE

IC card and finger print authentication are required when entering server rooms.

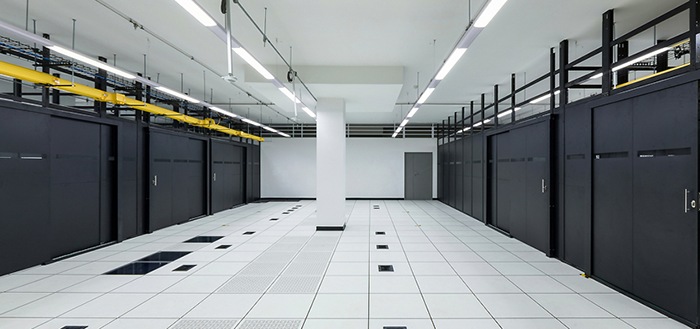

SERVER ROOM

Malaysia Cyberjaya 4 Data Center SERVER ROOM

Each rack is provided with dual power feed. Raised floor height is 800 mm, with loading capacity of 1500 kg /m2. Temperature and humidity sensors are installed at the cold aisle to provide suitable and efficient environment for servers.

Malaysia Cyberjaya 4 Data Center WATER MIST FIRE SUPPRESSION SYSTEM

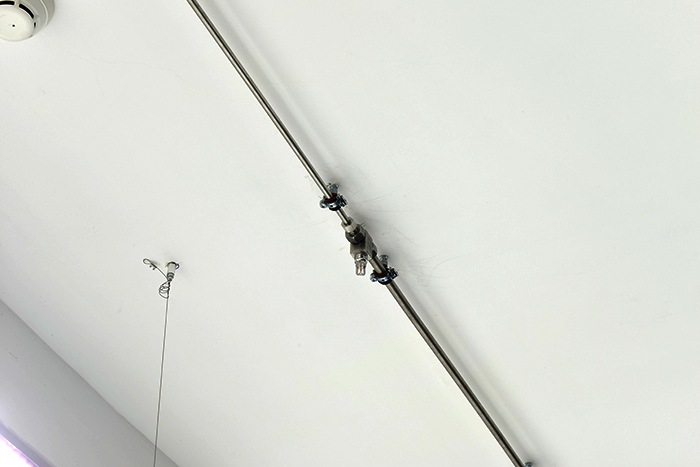

WATER MIST FIRE SUPPRESSION SYSTEM

Cyberjaya 4 Data Center is protected by purified water mist fire suppression system.
Water mist is a 100% clean agent as fire suppression system for both human and data center environment. It is tested to be equipment friendly as well.

Malaysia Cyberjaya 4 Data Center POWER CABLE

POWER CABLE

Cyberjaya 4 Data Center provides customers with 32 Amp single-phase power sockets for each standard rack. These sockets are colored red and grey.

Malaysia Cyberjaya 4 Data Center STANDARD RACK

STANDARD RACK

The load capacity for each 42U rack is about 900 kg (including rack unit) and Cyberjaya 4 Data Center has two options of rack which are W 600 mm × D 1000 mm × 42 U or W 800 mm × D 1000 mm × 42 U.
We are able to provide power capacity and associate cooling of at least 3kVA per rack.

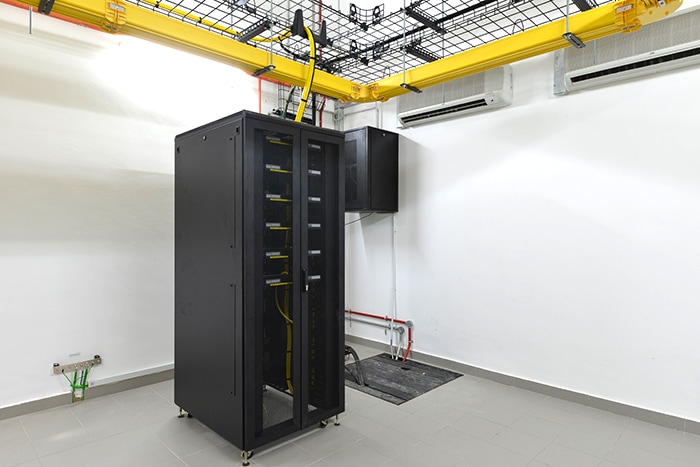

TELECOMMUNICATION EQUIPMENT ROOM

Malaysia Cyberjaya 4 Data Center TELECOMMUNICATION EQUIPMENT ROOM

Malaysia Cyberjaya 4 Data Center is a carrier neutral data center. Various choices of local carriers are available to meet the needs for network diversity.

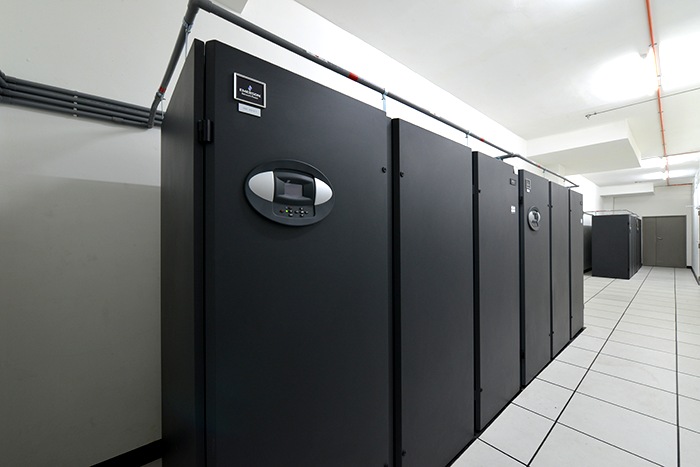

AIR-CONDITIONING ROOM

Malaysia Cyberjaya 4 Data Center AIR-CONDITIONING ROOM

Air-cooled, down flow precision air-conditioning system with N+1 redundant configuration is adopted. We are able to support cooling capacity of 3 kW per rack in average.

UPS ROOM

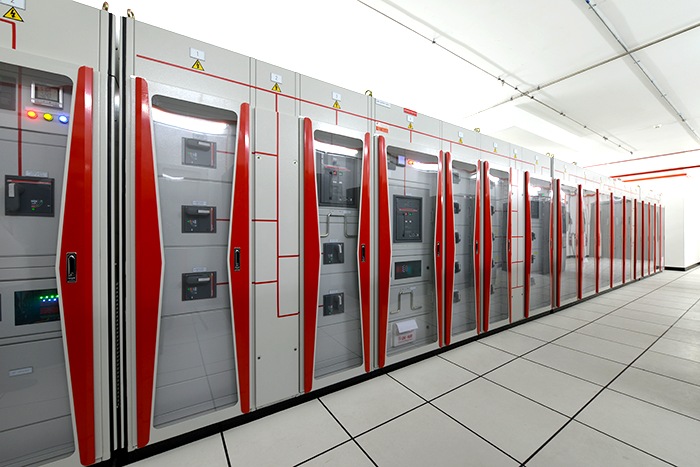

Malaysia Cyberjaya 4 Data Center UPS ROOM

UPS regulates electric power and maintains consistent power supply in the event of power failure. The UPS is able to provide 20 minutes of backup time on full load.

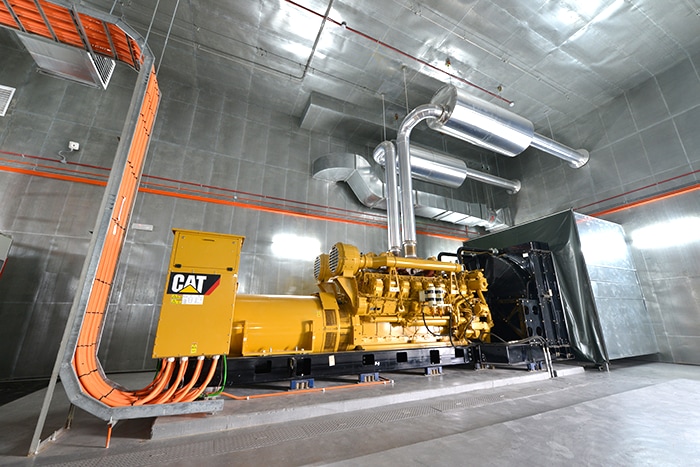

GENERATOR ROOM

Malaysia Cyberjaya 4 Data Center GENERATOR ROOM

Generators are in 2N redundant configuration with enough fuel to run at full load for 36 hours. We also have a contract with a diesel supplier to ensure continuous fuel supply.

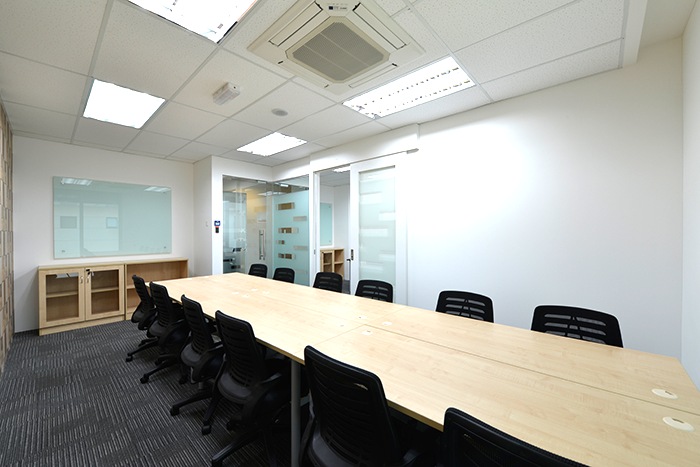

MEETING ROOM

Malaysia Cyberjaya 4 Data Center MEETING ROOM

Meeting room is available next to the staging area.

STAGING AREA

Malaysia Cyberjaya 4 Data Center STAGING AREA

Designated staging area is available for customer use.

DISASTER RECOVERY CENTER

Malaysia Cyberjaya 4 Data Center DISASTER RECOVERY CENTER

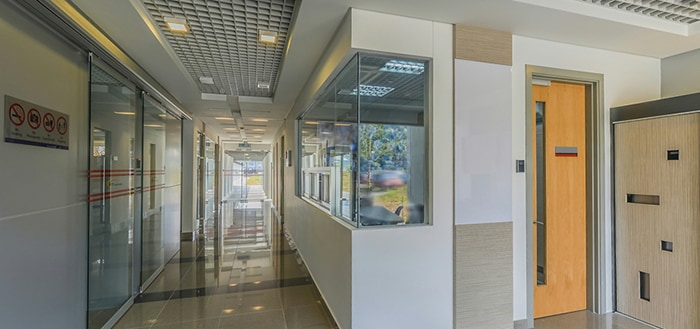

Disaster recovery center is placed inside the Global Solution Center at the office block. Pantry, meeting room, waiting area, and other amenities are prepared.

PROFESSIONAL CENTER

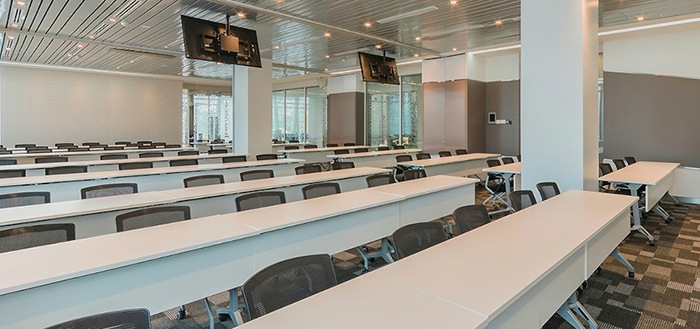

Malaysia Cyberjaya 4 Data Center PROFESSIONAL CENTER

Professional center is used for trainings, seminars, functions and meetings.

ROOFTOP GARDEN

Malaysia Cyberjaya 4 Data Center ROOFTOP GARDEN

A light atrium is incorporated at the rooftop garden to harvest more light into the building.
